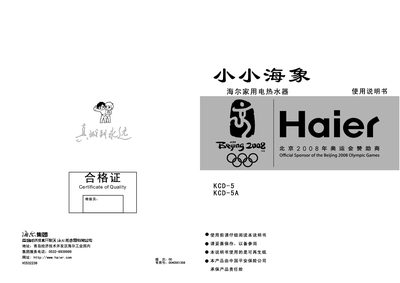

Haier KCD-5/KCD-5A Water Heater User Manual

About this manual

This manual covers the Haier KCD-5 and KCD-5A electric water heaters, describing their features, safety measures, and proper usage. It includes certification information, product specifications, and warranty details.

Key sections guide users through installation precautions, step‑by‑step installation, operating instructions, troubleshooting tips, and technical parameters such as voltage, power, capacity, and dimensions. Safety guidelines cover grounding, over‑temperature protection, and pressure limits. This manual is written in Chinese.

What's inside

• Certificate of Quality
• Installation Precautions
• Operation Instructions
• Safety Guidelines
• Product Features
• Technical Specifications
• Electrical Diagram
• Installation Method
• Troubleshooting

Specifications

Frequently asked questions

Who should install the Haier KCD-5/KCD-5A water heater?

Installation must be performed by Haier’s authorized service personnel or a designated installer.

What is the rated power of the KCD-5 model?

The KCD-5 model is rated at 2000 W.

What safety features are included in the water heater?

The heater has over‑temperature protection, internal pressure protection, a safety valve, and must be properly grounded.
