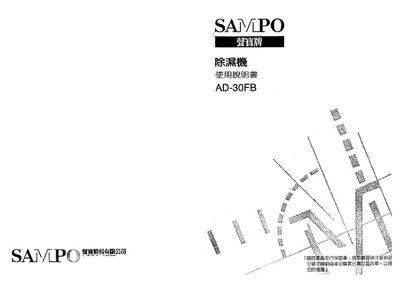

This manual explains how to install and operate the Sampo AD-30FB dehumidifier, including power connection, water‑tank handling, and control panel functions. It also lists safety checks to perform before use and details the device’s specifications such as rated voltage, capacity, and dimensions.
Additional sections cover troubleshooting common issues, emergency handling procedures, and regular cleaning of the filter and water tank to maintain optimal performance. This manual is written in Chinese.
| Rated voltage / frequency | 110V/60Hz |
|---|---|
| Dehumidification capacity | 15 L/day (27 °C, 50 % RH) |
| Power consumption | 400 W |
| Water‑tank capacity | 5.5 L |
| Weight | 14.0 kg |
| Dimensions (H×W×D) | 595 mm × 380 mm × 287 mm |
| Refrigerant | FC‑1343 |
| Filter media amount | 2300 g |
Remove the filter and clean the fluor filter regularly as described in the maintenance section.
The unit can remove up to 15 liters of moisture per day at 27 °C and 50 % relative humidity.
