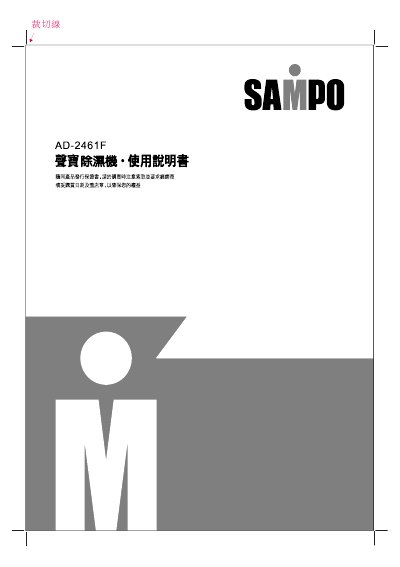

This manual provides step‑by‑step instructions for operating the AD‑2461F dehumidifier, including how to power the unit, adjust fan speed, and read the humidity display. It also covers the proper setup of the drainage hose and the required dimensions for the PVC pipe.
Safety warnings, routine cleaning of the air filter and internal components, and detailed specifications such as power supply, dehumidification capacity, dimensions and weight are listed to help users maintain optimal performance and ensure safe use. This manual is written in Chinese.
| Model | AD-2461F |
|---|---|
| Power Supply | 110V / 60Hz |
| Dehumidification Capacity | 12 公尋/日 |
| Power Consumption | 380 W |
| Dimensions (W×D×H) | 613×345×24 mm |
| Weight | 18 kg |
| Applicable Room Humidity | B TYPE: 5C>35C |
Replace it with a new cord supplied by the manufacturer or a qualified service technician.
Use a PVC soft hose with an inner diameter of 13 mm and a length of at least 100 cm, connect it to the drainage port, and ensure the hose runs lower than the unit without kinks.
Clean the air filter regularly; if it becomes blocked, clean it to maintain proper dehumidifier performance.
