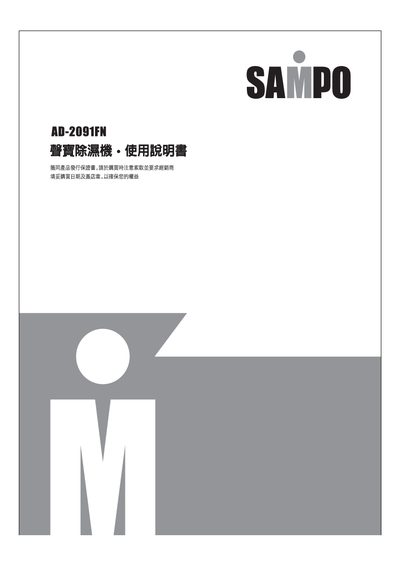

This manual explains how to install and operate the Sampo AD-2091FN dehumidifier, including power connection, humidity setting, and water‑tank handling. It also describes safety precautions such as keeping the unit away from heat sources and ensuring proper ventilation.
Additional sections cover routine maintenance like cleaning the air‑filter and draining the water tank, as well as a troubleshooting guide with common fault symptoms and recommended actions. Technical specifications of the unit are listed at the end of the document. This manual is written in Chinese.
| Model | AD-2091FN |
|---|---|
| Power Supply | Single‑phase 110V/60Hz |
| Dehumidifying Capacity | 27 °C RH 60 % 10 L/day |
| Power Consumption | 250 W |
| Ingress Protection | IPX0 |
| Dimensions (H×W×D) | 576 mm × 360 mm × 237 mm |
| Weight | 13.1 kg |
| Operating Temperature | 5 °C ~ 32 °C |
Press the humidity‑setting button and adjust it to the desired value; the unit will start dehumidifying when indoor humidity exceeds the set level.
When the full‑water indicator lights up, the dehumidifier stops automatically; remove the tank, empty the water, and reinstall the tank before restarting.
The air filter should be cleaned about every two months to maintain proper dehumidifying performance.
