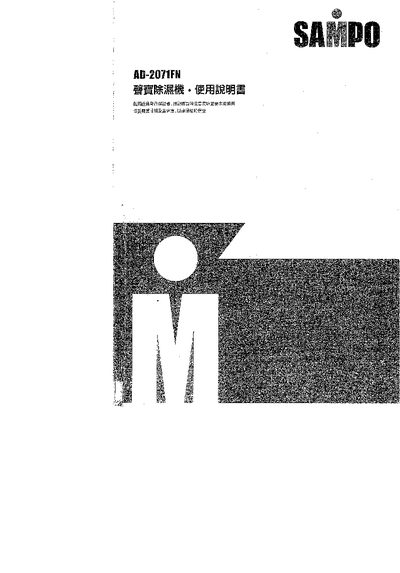

This manual explains safety precautions, proper power connection, and grounding requirements for the AD-2071FN dehumidifier. It also covers installation steps, including plugging the unit into a grounded outlet and avoiding use near flammable materials.
The guide details how to operate the unit, set humidity levels, drain the water tank, and perform regular cleaning of the air filter and internal components. Technical specifications such as power consumption, dehumidification capacity, dimensions, and operating temperature are listed at the end of the document. This manual is written in Chinese.
| Power Supply | 110V/60Hz |
|---|---|
| Power Consumption | 320 W |
| Dehumidification Capacity (27°C, 60% RH) | 10 L/day |
| Dehumidification Capacity (30°C, 80% RH) | 20 L/day |
| Dimensions | 598 × 400 × 215 mm |
| Weight | 15.3 kg |
| Operating Temperature Range | 5 °C ~ 35 °C |
Connect a 13 mm drainage pipe to the drain outlet and place the pipe lower than the unit so water can flow out.
If the wall outlet lacks a ground, attach the grounding terminal to the provided grounding screw on the unit.
Unplug the power cord and ensure the plug is removed before cleaning or maintenance.
