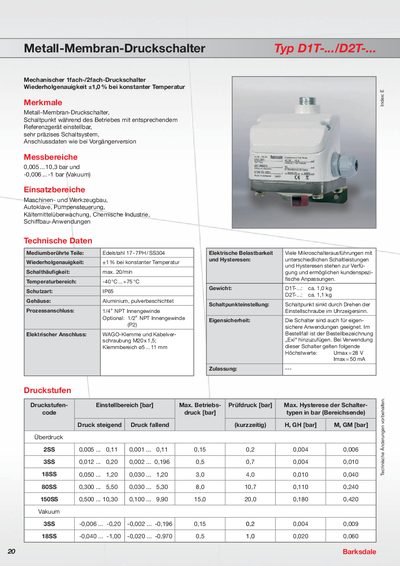

This document describes the D1T-./D2T-. model of metal membrane pressure switch. The product features a highly precise switching system, adjustable switching point, and is suitable for applications in machinery manufacturing, pump control, refrigerant monitoring, chemical industry, and more.
The Barksdale D1T-/D2T- series are metal‑membrane pressure switches designed for applications such as machine tool, autoclave, pump control and chemical industry. They feature a stainless‑steel (17‑7PH / SS304) membrane, IP65 protection and a temperature operating range from –40 °C to +75 °C.
Technical data include selectable pressure ranges from 0.005 bar up to 10.3 bar, electrical limits of 28 V max and 50 mA max, and a maximum switching frequency of 20 cycles per minute. The switches are available with 1/4" NPT or optional 1/2" NPT process connections and weigh approximately 1.0 kg (D1T) or 1.1 kg (D2T). This manual is written in German.
| Material of membrane | Edelstahl 17‑7PH / SS304 |
|---|---|
| Protection class | IP65 |
| Operating temperature range | -40 °C … +75 °C |
| Maximum switching frequency | 20 /min |
| Maximum voltage | 28 V |
| Maximum current | 50 mA |
| Weight (D1T) | ≈ 1.0 kg |
| Process connection size | 1/4" NPT (optional 1/2" NPT) |
The switches have an IP65 protection class.
The maximum allowable voltage is 28 V and the maximum current is 50 mA.
They can operate from –40 °C up to +75 °C.
Standard connection is 1/4" NPT, with an optional 1/2" NPT or M20 × 1.5 thread.
