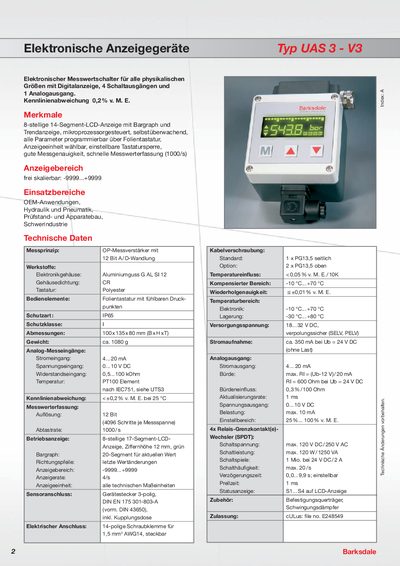

The Barksdale UAS 3 - V3 is an electronic measurement and display unit designed for OEM applications in hydraulics, pneumatics, test‑stand and heavy‑industry equipment. It features an 8‑digit 14‑segment LCD with bar‑graph and trend display, a programmable foil keypad, and selectable measurement units.
Technical data include a 12‑bit A/D conversion, 1000 samples / s, 4‑20 mA and 0‑10 V DC analog inputs, a PT100 temperature sensor, and four SPDT relay contacts rated up to 120 V DC/250 V AC. The device is housed in an IP65‑rated aluminium‑cast enclosure, operates from 18‑32 V DC, and meets industrial temperature ranges of –10 °C to +70 °C. This manual is written in German.
| Display | 8‑digit 14‑segment LCD with bargraph and trend display |
|---|---|
| Analog voltage input | 0‑10 V DC |
| Temperature sensor | PT100 element |
| Measurement accuracy | ±0.2 % of full scale |
| Sampling rate | 1000 samples / s, 12‑bit |
| Protection class | IP65 |
| Supply voltage | 18 V … 32 V DC |
| Dimensions (B×H×T) | 100 × 135 × 80 mm |
| Weight | ≈1080 g |
| Power consumption | ≈350 mA at 24 V DC |
| Relay contact rating | 120 V DC / 250 V AC, 120 W / 1250 VA |
The relay contacts can switch up to 120 V DC or 250 V AC with a maximum switching power of 120 W (1250 VA).
The device is rated IP65, providing protection against dust and water jets.
