UTF 3 Electronic Temperature Sensor is a direct-insert type miniature sensor with a compact structure, all medium-contact parts made of stainless steel, IP65 protection grade, high shock and vibration resistance, measuring range -40°C.+150°C, suitable for machinery and equipment manufacturing, environmental technology, process technology, heating and ventilation technology, mobile hydraulics for OEM applications temperature monitoring.

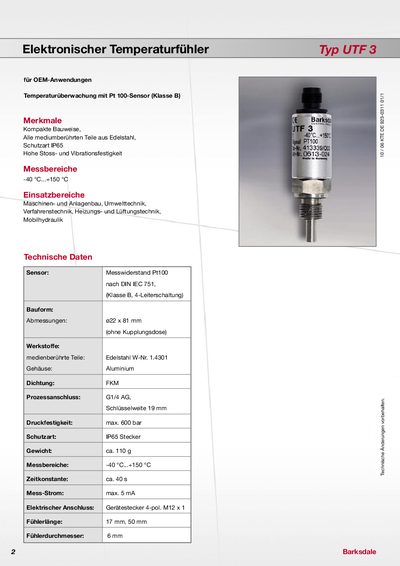

The Barksdale UTF3 is an electronic temperature sensor designed for OEM applications. It features a compact, robust construction with all media‑contact parts made of stainless steel and an aluminium housing, offering IP65 protection and high resistance to stress and vibration.
The sensor uses a Pt100 resistance element (Class B, 4‑wire) and provides a measurement range of –40 °C to +150 °C, a time constant of about 40 s, and a maximum measurement current of 5 mA. It is rated for up to 600 bar pressure and is available with 4‑pole M12 × 1 connectors (G1/4 AG process connection). This manual is written in German.
| Temperature range | -40 °C to +150 °C |
|---|---|
| Maximum pressure | 600 bar |
| Protection rating | IP65 |
| Housing material | Aluminium |
| Body material | Stainless steel (1.4301) |
| Weight | ≈110 g |
| Time constant | ≈40 s |
| Measurement current | max 5 mA |
| Sensor length | 17 mm, 50 mm |
| Sensor diameter | 6 mm |
It measures temperatures from –40 °C up to +150 °C.
The sensor is rated IP65.
The sensor can handle pressures up to 600 bar.
