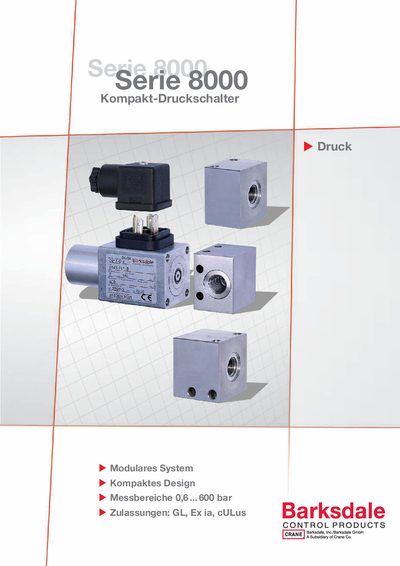

The Serie 8000 is a mechanical pressure switch from Barksdale with a modular structure, variability, high-quality materials, 100% testing, and long compression springs. It is suitable for OEM applications, mobile and industrial hydraulics and pneumatics, test benches and equipment manufacturing, and heavy industry.
The Serie 8000 series offers compact, modular pressure switches in membrane or piston construction. They feature a wide pressure range of 0.6 – 600 bar, low and precise switching points, and are suitable for OEM, mobile, industrial hydraulic and pneumatic, and heavy‑industry applications.
Technical data include various housing materials (NBR, PTFE, bronze, aluminium‑die‑cast), temperature limits of –40 °C to +80 °C (piston) or –20 °C to +80 °C (membrane), protection classes up to IP68, and certifications such as GL, Ex ia and cULus. Switching frequencies reach up to 60 /min for piston types and 30 /min for membrane types. This manual is written in German.
| Pressure range | 0.6 – 600 bar |
|---|---|
| Maximum switching frequency (piston type) | 60 /min |
| Temperature range (piston type) | -40 °C … +80 °C |
| Temperature range (membrane type) | -20 °C … +80 °C |
| Certifications | GL, Ex ia, cULus |
It covers a pressure range from 0.6 bar up to 600 bar.
The switch is certified for GL, Ex ia and cULus (and also UL, Type 4 on request).
The piston type can switch up to 60 times per minute.
The membrane type operates between –20 °C and +80 °C.
