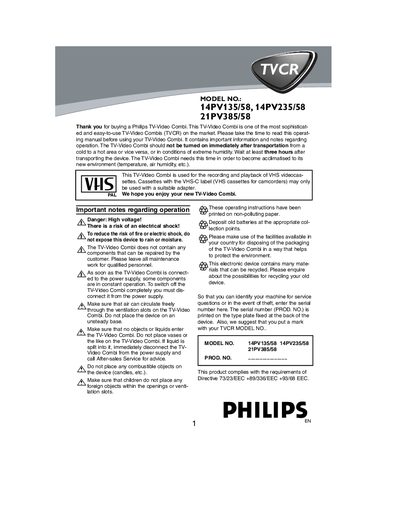

This TV-Video Combi is used for the recording and playback of VHS videocassettes. Cassettes with the VHS-C label may only be used with a suitable adapter. We hope you enjoy your new TV-Video Combi.
This TV-Video Combi is a VHS recording and playback unit that can also handle VHS‑C tapes with an adapter. It is designed for home use and includes built‑in TV tuners, audio/video inputs, and a remote control.
The manual covers preparation, power‑on safety, remote‑control battery installation, cable connections, on‑screen menu navigation, channel tuning (automatic and manual), decoder and satellite receiver setup, language and clock settings, teletext functions, sleep timer, cassette playback, picture adjustments, and troubleshooting.
| Voltage | 220‑240 V / 50 Hz |
|---|---|
| Power consumption (standby) | < 5 W |
| Rewind time (cassette E‑180) | < 260 s |
| Number of video heads | 2 |
| Recording/playback time (SP) | 3 h (cassette E‑180) |
| Recording/playback time (LP) | 6 h (cassette E‑180) |
| Power consumption (normal) | 52 W |
| Dimensions (HxWxD) | 40.1 × 37.9 × 38.0 cm |
| Weight (without packing) | 10.5 kg |
| Power consumption (larger model) | 65 W |
| Dimensions (larger model) | 51.2 × 51.0 × 49.5 cm |
| Weight (larger model, without packing) | 20.6 kg |
Wait at least three hours after transportation to allow the device to acclimatise to the new temperature and humidity.
Disconnect the unit from the power supply; the TV‑Video Combi does not have a user‑serviceable power‑off switch.
