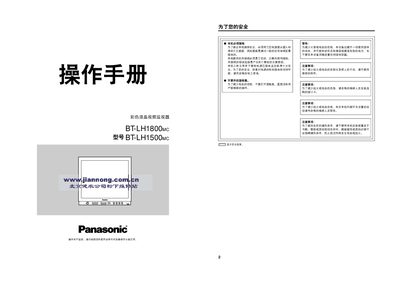

This manual provides detailed instructions on how to operate BT-LH1800MC and BT-LH1500MC.
Panasonic BT-LH1500MC and BT-LH1800MC are described as thin, lightweight commercial LCD monitors with 15-inch and 18.1-inch displays. The manual states that they are for commercial use and must be operated by a technically knowledgeable person.
It explains safety precautions, front and rear controls, screen menus, marker displays, parallel remote GPI functions, input selection, maintenance checks, and specifications. It also identifies optional analog component, SDI, and HD-SDI input units. This manual is written in Chinese.
| Display size | BT-LH1500MC: 15 inches; BT-LH1800MC: 18.1 inches |
|---|---|
| Panel aspect ratio | BT-LH1500MC: 4:3; BT-LH1800MC: 5:4 |
| Native resolution | BT-LH1500MC: 1024 x 768 (XGA); BT-LH1800MC: 1280 x 1024 (SXGA) |
| Display colors | Approximately 16,770,000 colors |
| Power supply | AC 100–240 V |
| Power consumption current | BT-LH1500MC: 0.66–0.31 A; BT-LH1800MC: 0.95–0.40 A |
| Weight | BT-LH1500MC: approximately 6.3 kg; BT-LH1800MC: approximately 8.3 kg |
| Operating temperature | +5°C to +35°C |
| Storage temperature | -10°C to +40°C |
| Operating humidity | 20% to 80% |
| VESA mounting hole spacing | 100 x 100 mm and 75 x 75 mm |
| Remote GPI interface | 8 inputs through a 9-pin D-sub connector |
| Standard composite video inputs | 2 systems; BNC x 2 |
| Optional input types | Analog component, SDI, and HD-SDI |
The BT-LH1500MC has a 15-inch display, while the BT-LH1800MC has an 18.1-inch display.
The monitors support hole spacings of 100 x 100 mm and 75 x 75 mm.
The remote interface provides eight GPI inputs through a 9-pin D-sub connector.
The listed optional input types are analog component, SDI, and HD-SDI.
