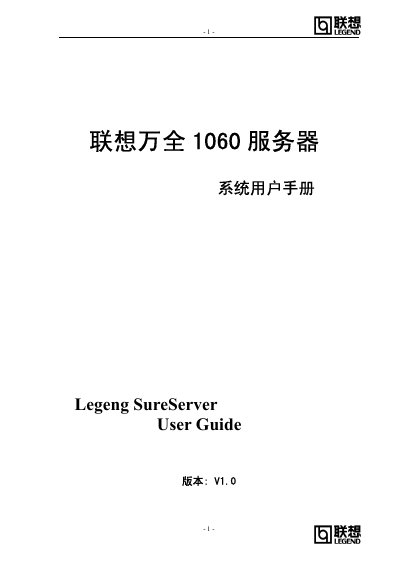

This is the user manual of Lenovo SureServer 1060, which introduces the overview, installation, technical characteristics, settings, operating system installation and other content.
This manual provides a complete overview of the Lenovo ThinkServer 1060, covering product features, technical specifications, and system architecture. It includes detailed instructions for hardware installation, BIOS configuration, and operating‑system setup.
The guide also explains the IDE RAID FastTrak66 controller, how to configure and rebuild RAID arrays, and offers safety, warranty, and FAQ sections for reliable server operation and maintenance. This manual is written in Chinese.
| CPU | Intel Pentium III FC‑PGA 800‑1000 MHz |
|---|---|
| Cache | 256 KB L2 cache |
| Memory | Up to 512 MB PC‑133 SDRAM (3 DIMM slots) |
| Chipset | Intel 815E |
| IDE Controller | ATA 66/100 |
| RAID Controller | FastTrak66 IDE RAID, supports RAID 1 |
| Power Supply | 200 W ATX, 220 V |
| Dimensions | 470 mm × 210 mm × 505 mm |
| Expansion Slots | 6 PCI slots, 1 AGP slot |
| Drive Bays | 4 internal hard‑drive bays (plus 1 optical, 1 floppy) |
It provides six PCI slots and one AGP slot.
The server can hold up to 512 MB of PC‑133 SDRAM across three DIMM slots.
