This is the instruction manual for MP3CD, which introduces the functions and features of the product and how to use it.

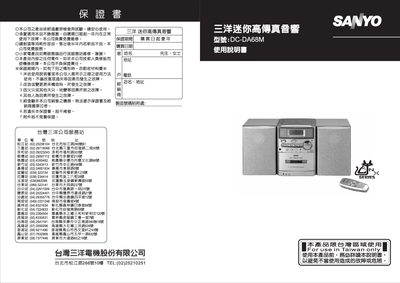

This manual covers the specifications, installation, and everyday use of the Sanyo DC-DA68M mini hi‑fi system. It explains how to connect power, speakers, and the remote control, and describes the functions of the CD/MP3 player, cassette deck, AM/FM radio and other features.
Safety guidelines, maintenance procedures, and a detailed troubleshooting section are included to help keep the unit operating reliably. The document also provides cleaning instructions for discs, heads, and the chassis, as well as guidance on proper cassette selection and recording. This manual is written in Chinese.
| Power supply | AC 110V/220V 60/50Hz |
|---|---|
| Remote control power source | DC 3V (2 × AAA) |
| Output power (P.M.P.O.) | 100 W |
| Power consumption | 20 W |
| Speaker rating | 4 W / 8 Ω |
| Radio frequency range | AM 540 kHz – 1600 kHz, FM 88 MHz – 108 MHz |
| CD frequency response | 63 Hz – 20 kHz |
| Signal‑to‑noise ratio | 50 dB |
| MP3 bitrate support | 8 kbps – 384 kbps (including free format) |
| MP3 sample rates | 32 kHz / 44.1 kHz / 48 kHz |
| Dimensions (W×D×H) | 163 mm × 196 mm × 230 mm |
| Weight | 4.2 kg |
Turn the unit off, unplug it, then reconnect the power source to resume normal operation.
Wipe the shiny side with a soft dry cloth from the centre outward; do not use solvents or record cleaners.
Insert the left and right speaker wires into the SPEAKER L and SPEAKER R output sockets respectively.
