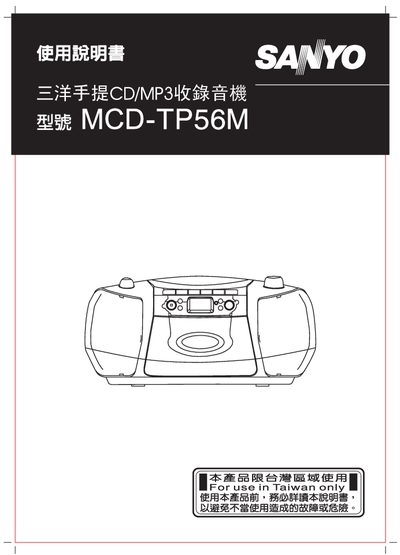

This is a portable CD player that can play CDs, MP3s, and FM radio. It has a USB port so it can connect to a computer to play music. It can also connect to a phone to act as an external speaker.
This manual begins with safety warnings and emergency handling procedures to prevent injury, fire, or damage caused by improper use, including warnings about water exposure, improper power connections, and disassembly. It also details proper battery installation, power‑supply connection, and precautions for long‑term storage.
The guide then explains the functions of the device: how to operate the CD/MP3 controls, switch to radio mode, adjust volume, and use the cassette recorder. It includes a parts diagram, specifications, and a simple troubleshooting section for common issues such as no sound or playback errors. This manual is written in Chinese.
| Power supply | AC 110V, 60Hz |
|---|---|
| Power consumption | 13 W |
| Output power | 2 × 1.3 W RMS |
| Cassette recording frequency range | 40 Hz – 12 kHz |
| Tape speed | 4.75 cm/s |
| AM frequency range | 540 kHz – 1600 kHz |
| FM frequency range | 88 MHz – 108 MHz |
| CD audio frequency range | 40 Hz – 12 kHz |
| Signal‑to‑noise ratio (CD) | 60 dB |
| CD sample rate | 44.1 kHz |
| MP3 sample rates | 32 kHz, 44.1 kHz |
| MP3 bitrate | 32‑320 kbps |
| Dimensions (W×D×H) | 316 mm × 294 mm × 192 mm |
| Weight | 2.6 kg |
Open the battery compartment, insert two AAA batteries with the correct polarity (+/–) as shown, and do not mix new and used batteries.
Connect the AC power cord to an AC 110 V, 60 Hz outlet; do not use a voltage other than 110 V.
Turn the function selector switch to the RADIO position, adjust the volume, and select the desired AM or FM band.
Turn the unit off, unplug the power cord, and allow it to cool; ensure ventilation holes are not blocked.
