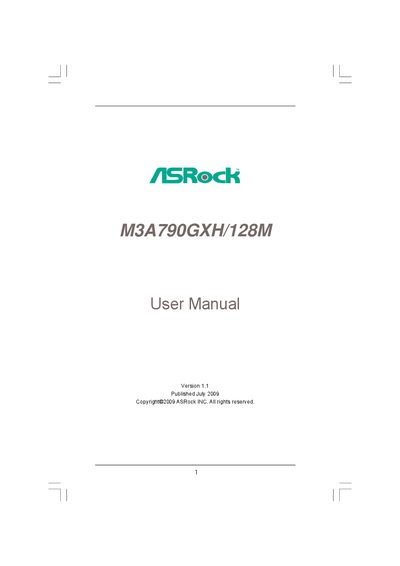

ASRock M3A790GXH/128M Motherboard User Manual

M3A790GXH/128M User Manual, introduces the features and characteristics of M3A790GXH/128M motherboard

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 80
File format: PDF
File size: 1.5 MB
Published: 15 March, 2012
Updated: 30 September, 2023
Models: M3A790GXH, M128M, 128M
MD5 checksum: 9367A1C5779E31334281287BF3B587EE
PDF: ASRock M3A790GXH/128M Motherboard User Manual PDF

About this manual

This manual introduces the ASRock M3A790GXH/128M ATX motherboard and guides users through hardware installation, component connections, and system configuration. It includes a detailed table of contents covering everything from package contents to BIOS utilities and software support.

The document also lists the technical specifications, supported CPUs, memory configurations, expansion slots, graphics, audio, networking, and storage options, along with safety warnings, over‑clocking guidance, and troubleshooting tips for Windows operating systems.

What's inside

Introduction
Specifications
Installation
BIOS Setup Utility
CrossFireX Operation Guide
SATA & eSATA Interfaces
Power Management Features
Software Support
Contact Information

Specifications

Form Factor	ATX (12.0‑in x 8.8‑in)
CPU Socket	Socket AM3
Chipset	AMD 790GX northbridge, AMD SB750 southbridge
Integrated Graphics	AMD Radeon HD 3300
Audio Codec	Realtek ALC890 (110 dB dynamic range)
LAN	Realtek RTL8111DL Gigabit Ethernet
SATA Ports	6 × SATAII (3.0 Gb/s) connectors, RAID 0/1/5/10/JBOD
BIOS	8 Mb AMI BIOS

Frequently asked questions

How many SATA ports are available and do they support RAID?

The board provides six SATAII (3.0 Gb/s) connectors that support RAID 0, RAID 1, RAID 5, RAID 10 and JBOD.

What is the form factor of the M3A790GXH/128M motherboard?

It is an ATX motherboard measuring 12.0 in × 8.8 in (30.5 cm × 22.4 cm).

Download PDF (1.5 MB)
