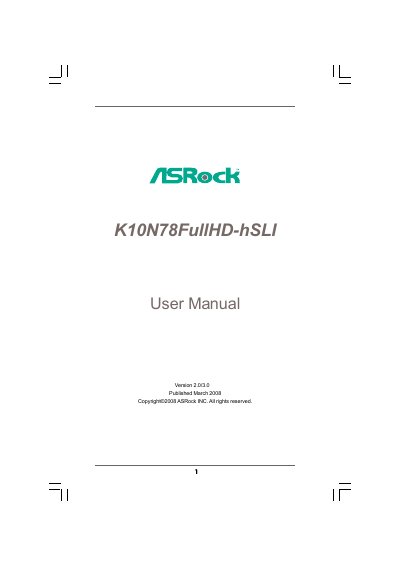

K10N78FullHD-hSLI User Manual Version 2.0/3.0
This manual covers everything needed to install and configure the ASRock K10N78FullHD-hSLI motherboard, including package contents, hardware layout, and detailed installation procedures for CPU, memory, and expansion cards. It also explains BIOS navigation, overclocking options, and software support via the included Support CD.
Additional sections describe minimum hardware requirements for Windows Vista Premium, HDMI audio functionality, SATA hot‑plug features, and troubleshooting tips. Contact information and warranty notices are provided at the end of the document.
| Form Factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU Socket | Socket AM2+ / AM2 |
| Chipset | NVIDIA® GeForce 8200 |
| Memory Slots | 4 x DDR2 DIMM |
| Maximum Memory | 8 GB |
| Expansion Slots | 1 x PCI‑Express 2.0 x16, 1 x PCI‑Express x1, 2 x PCI |
| Integrated Graphics | NVIDIA® GeForce8 Series, 512 MB shared |
| HDMI Audio | Supported via HDMI_SPDIF header |
| SATA II Connectors | 6 x 3.0 Gb/s ports (RAID supported) |
| LAN Controller | Realtek RTL8201CL (10/100 Mb/s) / RTL8211B (10/100/1000 Mb/s) |
| BIOS | 4 MB AMI BIOS |
It supports Socket AM2+ and Socket AM2 processors.
The board provides six SATA II (3.0 Gb/s) connectors with RAID and hot‑plug support.
Yes, it supports 1080p Blu‑ray (BD) / HD‑DVD playback via the DVI‑D port.
The board uses a 4 MB AMI BIOS.
