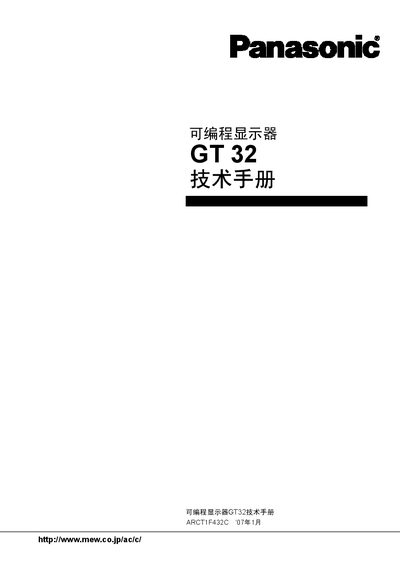

This manual is the GT32 programmable display's technical manual, which mainly introduces the product's specifications, connection methods with PLC, environmental settings, maintenance, and GTWIN installation methods.
This manual provides safety guidelines, specifications, and installation procedures for the Panasonic GT32 programmable display. It includes detailed instructions for connecting the unit to various PLCs, configuring the GTWIN programming tool, and setting environmental parameters.
The document also covers maintenance, troubleshooting error codes, and data tables such as cable specifications and code mappings. Warranty and ordering information are provided at the end of the manual. This manual is written in Chinese.
| Operating Temperature Range | 0‑50 °C |
|---|---|
| Relative Humidity Range | 20‑85 %RH |
| Ingress Protection Rating | IP65 |
Open the GTWIN menu and select the option to switch the language from English to Chinese.
Connect the GT32 COM port to the PLC’s COM port using the appropriate cable as described in the connection section.
The display should be used in environments where relative humidity is between 20 % and 85 % RH.
