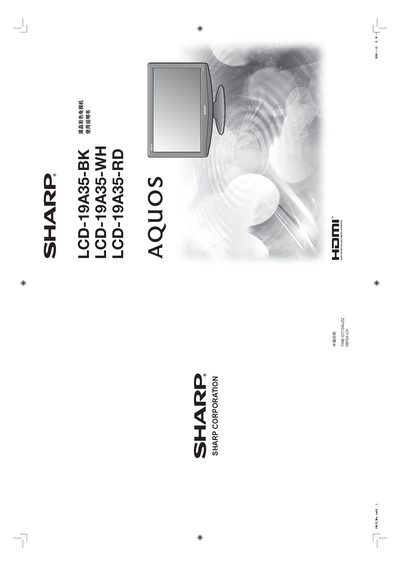

This document is a user manual for the Sharp Corporation China Printing TINS-D715WJZZ 08P04-CH LCD color TV. The document provides detailed instructions on installation, component names, remote control usage, TV viewing, audio adjustment, and settings when using external devices.
This manual provides important safety notices, a list of included accessories, and step‑by‑step instructions for installing the TV on its base or wall mount. It also covers proper handling, cleaning, and precautions to avoid damage or injury.
The guide explains how to operate the remote control, connect external devices such as DVD players, game consoles, and computers, and adjust picture and audio settings. It includes the options menu, channel setup, child‑lock configuration, and a full specifications table. This manual is written in Chinese.
| Screen size | 18.5 inches (470 mm) |
|---|---|
| Pixel count | 3,147,264 pixels (1366 × 768) |
| Video color standards | PAL / SECAM / NTSC |
| Power consumption | 45 W (0.5 W standby) |
| Weight (without stand) | 4.7 kg |
| Power supply | AC 110 – 220 V, 50 Hz |
| HDMI input | 1 HDMI (INPUT 3) |
| RS‑232C port | 9‑pin D‑sub connector |
| Backlight lifetime | 50,000 hours |
Enter the password screen, type “3001”, then follow the on‑screen prompts to clear the password.
The TV operates on AC 110 – 220 V at 50 Hz.
The TV provides one HDMI input, labeled INPUT 3.
