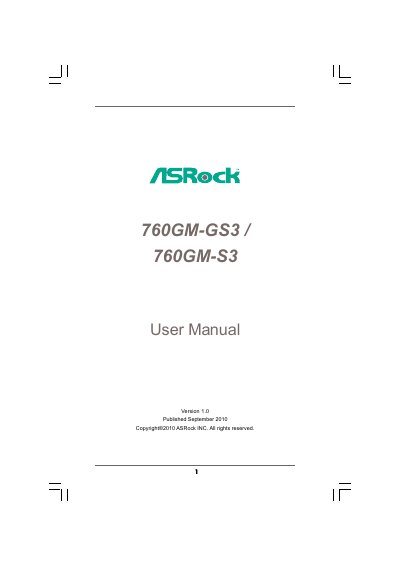

This document is the user manual published by ASRock Inc., which provides instructions and precautions for using the 11111 760GM-GS3 / 760GM-S3 motherboard.
This manual provides a complete guide to the ASRock 760GM‑GS3 / 760GM‑S3 motherboard, including an introduction, detailed specifications, and a layout diagram of the board and I/O panel. It also walks users through hardware installation steps such as CPU, memory, and expansion cards, as well as SATA and IDE drive connections.
Later sections cover the BIOS Setup Utility with explanations of each screen, overclocking features, and the software support CD that contains drivers, utilities, and troubleshooting information. Safety warnings, warranty notes, and contact details are also included. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6‑in x 7.2‑in) |
|---|---|
| CPU Socket | Socket AM3 |
| Chipset | Northbridge AMD 760G, Southbridge AMD SB710 |
| Memory | Dual‑Channel DDR3, up to 8 GB |
| Expansion Slots | 1 × PCIe 2.0 x16, 1 × PCIe 2.0 x1, 2 × PCI |
| Integrated Graphics | AMD Radeon HD 3000 |
| Audio Codec | Realtek ALC662 (5.1 CH HD Audio) |
| LAN | Realtek PCIe x1 Gigabit LAN (RTL8111E) on GS3 |
| SATA Ports | 4 × Serial ATAII 3.0 Gb/s connectors (RAID supported) |
| BIOS | 8 Mb AMI BIOS |
The motherboard supports Windows 7/7 64‑bit, Vista/Vista 64‑bit, Windows XP, XP Media Center and XP 64‑bit.
Four USB 2.0 ports are provided on the rear panel.
Up to 8 GB of DDR3 memory can be installed.
Yes, the GS3 model includes a Realtek PCIe x1 Gigabit LAN (RTL8111E) port.
