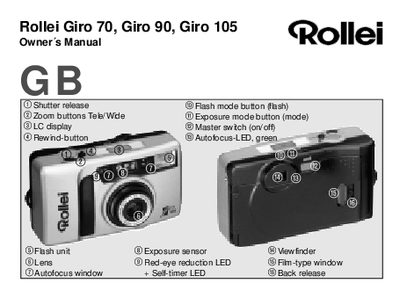

This document is the owner's manual for the Rollei Giro series cameras, providing detailed information on the camera's features and operation.
This manual introduces the Rollei Giro 70/90/105 35 mm camera and explains how to load the battery and film, operate the shutter, zoom, autofocus and flash functions, and select shooting modes such as portrait zoom, continuous shooting, bulb exposure and infinity setting. It also covers self‑timer operation, date imprinting (optional data back) and basic maintenance.
A troubleshooting section lists common problems like shutter lock, blurred pictures, and focus errors, while the specifications page details the camera’s lens range, shutter speeds, flash range, viewfinder coverage, power source, dimensions and weight.
| Camera type | Fully automatic 35mm leaf‑shutter camera |
|---|---|
| Lens | Power zoom 38 mm f/5.0 – 70 mm f/8.7 – 90 mm f/11 – 105 mm f/12.75 |
| Shutter speed range | 1/250 s to 1/3 s plus bulb (1/2 s – 60 s) |
| Focusing range | 0.8 m – 8 m |
| Flash range (wide‑angle 38 mm) | 0.8 m – 4.5 m |
| Power source | 1 × 3‑V lithium battery (CR2) |
| Dimensions (mm) | 112.2 × 64 × 42 |
| Weight | 200 g (without battery) |
| Viewfinder coverage | 83 % |
The self‑timer delay is 10 seconds; the lamp lights continuously for 7 seconds and then blinks for the remaining 3 seconds before the picture is taken.
