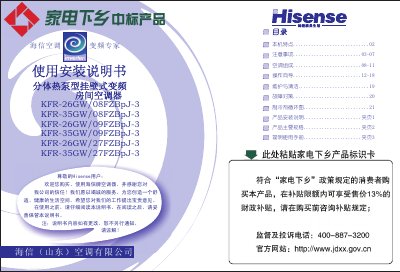

Hisense air conditioner use and installation manual, introduces the characteristics, precautions, installation, operation, maintenance and cleaning of air conditioners.
The document is a complete guide for the Hisense KFR-35GW/09FZBpJ-3 split‑type wall‑mounted heat‑pump air conditioner. It covers product features, safety warnings, detailed installation steps for indoor and outdoor units, wiring, refrigerant piping, and commissioning procedures.
Additional sections describe how to use the remote control, set modes, fan speeds, timers, and de‑humidification, as well as routine cleaning, maintenance, troubleshooting, and fault handling. The manual emphasizes proper grounding, qualified electricians, and safe handling to prevent electric shock or fire. This manual is written in Chinese.
| Rated power supply voltage | F a.c 220 V |
|---|---|
| Rated cooling capacity (min/medium/max) | 2.6 kW (1.0 kW/1.3 kW/3.4 kW) |
| Rated heating capacity (min/medium/max) | 3.5 kW (1.0 kW/1.78 kW/3.85 kW) |
| Rated cooling input power (min/medium/max) | 0.77 kW (0.15 kW/0.33 kW/1.45 kW) |
| Indoor noise level (min/max) | 25 dB(A) / 39 dB(A) |
| Net weight (indoor / outdoor) | 9.0 kg / 28.0 kg |
Use the remote to select the operating mode, set the desired temperature, choose fan speed (auto/high/medium/low), enable the timer, and activate functions such as de‑humidification, sleep, or air‑freshening.
