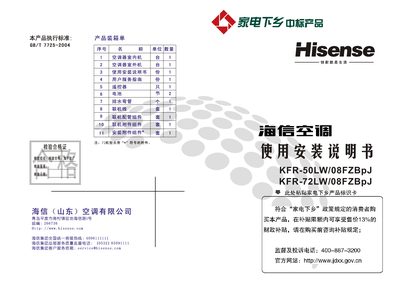

This document provides operating instructions for KFR-50LW/08FZBpJ and KFR-72LW/08FZBpJ air conditioners
This manual provides step‑by‑step installation instructions, safety warnings, and a description of the indoor and outdoor units, remote control functions, and operation modes. It also includes a quick‑start guide and a detailed list of accessories required for proper setup.
Technical specifications, wiring diagrams, and maintenance tips are listed in the later sections, helping qualified installers ensure correct voltage, grounding, and placement of the outdoor unit to avoid corrosion or safety hazards. This manual is written in Chinese.
| Model | KFR-50LW/08FZBpJ, KFR-72LW/08FZBpJ |
|---|---|
| Rated power voltage | AC 220V |
| Applicable voltage range | 175 V ~ 250 V |
| Rated power frequency | 50 Hz |
| Cooling capacity (max) | 6.0 kW |
| Heating capacity (max) | 8.6 kW |
| Indoor unit noise (max) | 44 dB(A) |
