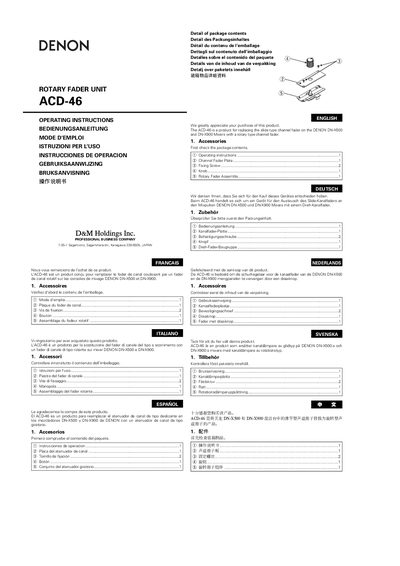

Denon ACD-46 Rotary Fader Unit Operating Manual

This document provides operating instructions and installation steps for the ACD-46. The ACD-46 is a product designed to replace the slide type channel fader with a rotary type channel fader on the DENON DN-X500 and DN-X900 Mixers.

Brand: Denon
Category: Other
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 339 KB
Published: 15 March, 2012
Updated: 29 September, 2023
MD5 checksum: 77982564090C31BAF520715CD59FD49E
PDF: Denon ACD-46 Rotary Fader Unit Operating Manual PDF

About this manual

The ACD-46 is a retrofit unit that replaces the slide‑type channel fader on Denon DN‑X500 and DN‑X900 mixing consoles with a rotary‑type fader. This manual lists the accessories included, shows removal and mounting diagrams, and details the replacement procedure.

The replacement procedure requires the power switch of the mixer to be set to OFF, removal of the two fixing screws, disconnecting the channel‑fader wiring, installing the rotary fader assembly, and securing the knob in the correct orientation before testing operation.

What's inside

Accessories
Package Contents
Channel Fader Removal Diagram
Rotary Fader Mounting Diagram
Replacement Procedure

Specifications

Compatible Mixers	DENON DN‑X500, DN‑X900
