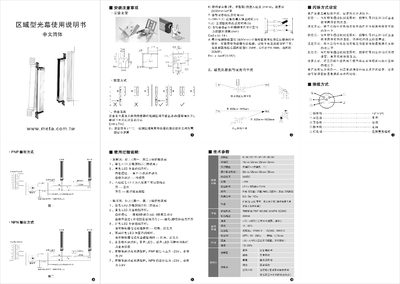

This manual describes the installation precautions for the area‑type safety light curtain, including required safety distances and mounting instructions. It also explains the wiring connections for the transmitter and receiver, and the meaning of the LED indicators.
The document includes technical specifications such as power supply voltage, power consumption, detection distance, and environmental limits. It also details the three alarm modes and how to set them by wiring the red and brown wires within five seconds after power‑on. This manual is written in Chinese.
| Power Supply Voltage | 24 VDC |
|---|---|
| Reaction Time | < 0.5×光轴数 + 5 ms |
| Storage Temperature | -25 °C to 470 °C |
| Humidity (operating) | 15 %–85 % |
| Detection Distance | 0.5 m – 5 m / 10 m |
| Output Current | 200 mA |
Connect the red and brown wires within five seconds after powering the unit to select one of the three alarm modes; the default is mode 1.
