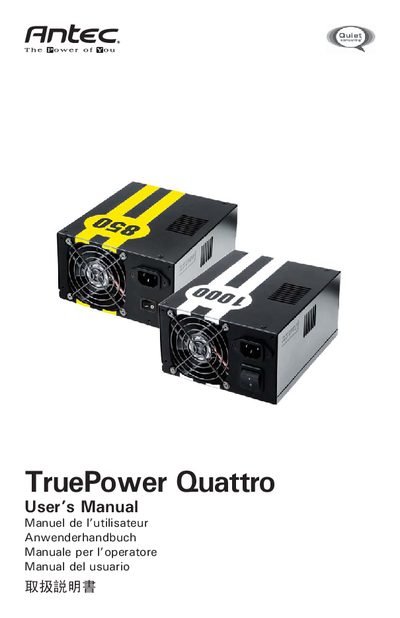

This manual introduces the use and precautions of the TruePower Quattro series products.
The TruePower Quattro series from Antec is a high‑efficiency modular power supply designed for desktop and server use. It supports EPS12V v2.91 and ATX12V specifications and offers four +12V output rails with advanced protection features.
The manual covers installation steps, connector configurations, cable management, safety protections (OPP, OVP, SCP, UVP), active PFC, fan operation, and warranty information. Parts lists and wiring diagrams are included to help users set up the unit correctly. This manual is written in Japanese.
| Model | TPQ-850, TPQ-1000 |
|---|---|
| Input Voltage Range | 100 V – 240 V (universal) |
| +12 V Output Rails | Four |
| Protection Circuits | OPP, OVP, SCP, UVP |
| Efficiency Certification | 80 PLUS |
| Fan Operation | Low‑speed quiet, speed increases with temperature |
It provides four separate +12 V output rails.
The unit accepts a universal input from 100 V to 240 V.
It includes over‑power (OPP), over‑voltage (OVP), short‑circuit (SCP) and under‑voltage (UVP) protections.
