TRUEPOWER NEW 650-WATT POWER SUPPLY USER S MANUAL

This document is the user manual for Antec TruePower New 650W power supply

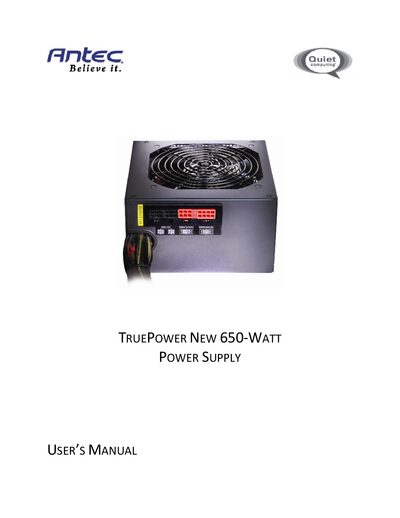

TRUEPOWER NEW 650-WATT POWER SUPPLY USER S MANUAL - cover page
Brand
TRUEPOWER
Document type
User Manual
Language
English
Pages
8
File format
PDF
File size
419 KB
Published
14 March, 2012
Updated
30 September, 2023
MD5 checksum
ECCAABCBA2D91704FE5B606D159FC3CC
PDF
TRUEPOWER NEW 650-WATT POWER SUPPLY USER S MANUAL PDF

About this manual

The TruePower New TP-650 is a high‑quality, 650 W ATX12V v2.3/EPS 12V v2.91 compliant power supply from Antec. It offers universal 100‑240 V input, Active PFC, 80 PLUS Bronze efficiency, and NVIDIA SLI‑Ready certification.

The manual lists the cable set, the four +12 V rails with up to 22‑25 A each, and provides step‑by‑step installation guidance, including connector wiring and safety protections such as OVP, OCP and SCP.

What's inside

  • Standards and Features
  • System Protection
  • 80 PLUS Bronze Certification
  • Cable Management
  • Power Output
  • Installation

Specifications

Maximum Continuous Power650 W
Number of +12 V Rails4
+12 V Rail Current (per rail)up to 22‑25 A
Protection FeaturesOVP, SCP, OCP

Frequently asked questions

How many +12 V rails does the TP-650 have and what is their maximum current?

It has four separate +12 V rails, each capable of delivering up to 22‑25 A depending on the rail.
