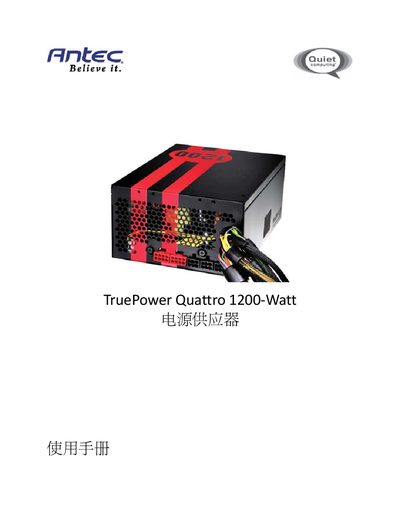

The TruePower Quattro 1200-Watt power supply is a high-performance power supply introduced by Antec, suitable for large servers and imaging workstations. It has 6 +12V outputs, supports 3 high-end graphics cards, and complies with ATX 12V v2.3 and EPS 12V v2.91 specifications. The power supply features multiple safety circuit designs and 80 PLUS® Silver certification, providing efficient and environmentally friendly power.
The TPQ-1200 is a 1200‑Watt high‑performance power supply that complies with ATX 12V v2.3 and EPS 12V 2.91 standards. It offers six independent +12 V rails, each capable of delivering up to 38 A, and includes 80PLUS Silver efficiency certification.
This guide explains how to install the unit, connect the 24‑pin main power connector (with an optional 4‑pin add‑on for 20‑pin boards), attach the required PCI‑Express, Molex, and SATA cables, and observe safety features such as OVP, OPP, and UVP. It also notes NVIDIA SLI‑Ready support and provides specifications for each voltage rail. This manual is written in Japanese.
| +5V Rail Current | 30 A max, tolerance -3%~+5%, ripple <50 mV |
|---|---|
| +3.3V Rail Current | 25 A max, tolerance -3%~+5%, ripple <50 mV |
| Efficiency Certification | 80PLUS Silver |
Use the 24‑pin main power connector; a 4‑pin add‑on can be used for 20‑pin boards.
It meets the 80PLUS Silver efficiency standard.
