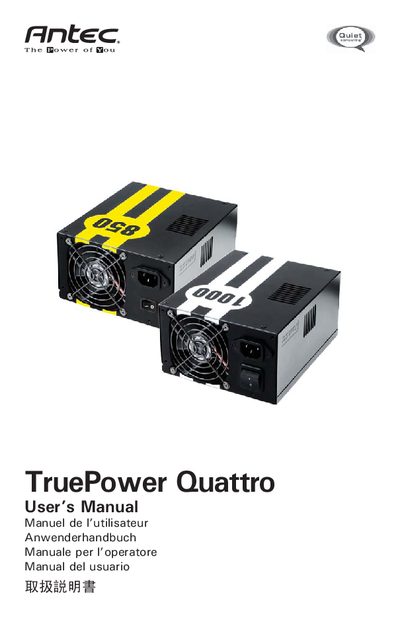

TruePower Quattro User’s Manual, introduces the features and characteristics of the TruePower Quattro high efficiency modular power supply, including supported specifications, output power distribution, safety protection circuit, and cooling method
The TruePower Quattro series from Antec is a high‑efficiency modular power supply designed for server‑level processors. It offers four +12 V outputs, universal 100‑240 V AC input, Active PFC, and 80 PLUS certification, with built‑in protections such as OCP, OVP, SCP and UVP.
The manual covers connector descriptions, cable‑management options, step‑by‑step installation instructions, safety notes, and warranty details. It also lists the included accessories and provides contact information for Antec support in the US and Europe.
| Models | TPQ-850, TPQ-1000 |
|---|---|
| Efficiency Certification | 80 PLUS certified |
| +12 V Outputs | Four |
| Protection Features | OCP, OVP, SCP, UVP |
| Power Factor Correction | Active PFC |
| Main Power Connector | 24‑pin with detachable 4‑pin section |
The power supply provides four +12 V outputs.
The unit includes Over Current Protection (OCP), Over Voltage Protection (OVP), Short Circuit Protection (SCP) and Under Voltage Protection (UVP).
