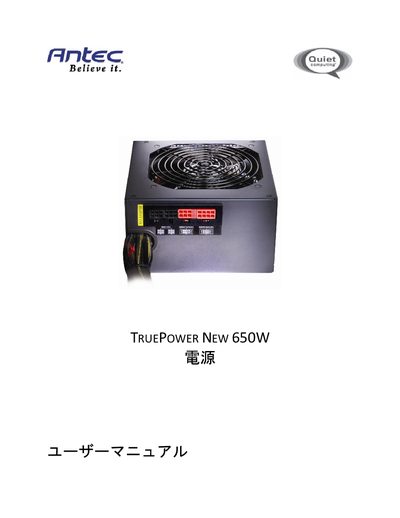

The TRUEPOWER NEW 650W is a high-quality and reliable power supply suitable for high-end system builders and power users who value quality. It features ±3% regulation and strict voltage control. It complies with ATX12V v2.3 and EPS12V v2.91 standards, supports 100~240V voltage input, and has 80 PLUS® Bronze certification and NVIDIA SLI™-READY certification. It adopts advanced hybrid cable management, allowing for the addition or removal of cables as needed.
The TP-650 is a 650 W ATX12V v2.3/EPS12V v2.91 compliant power supply from Antec's TruePower New series. The manual describes its high efficiency, 80 PLUS Bronze certification, and features such as active PFC, modular cable management, and PWM‑controlled fan.
Key sections cover system protection circuits (OVP, SCP, OCP), detailed output specifications for each rail, installation instructions, and a complete list of modular connectors and cables. The document also includes tables of voltage limits, current capacities, and wiring diagrams to aid system builders and technicians. This manual is written in Japanese.
| Input voltage range | 100‑240 V AC |
|---|---|
| Maximum continuous output | 650 W |
| +12 V rails | 4 independent rails |
| +12 V1 max current | 22 A |
| +12 V2 max current | 22 A |
| +3.3 V max current | 25 A |
| Efficiency (minimum) | 82 % |
| 80 PLUS certification | Bronze |
The TP-650 provides four independent +12 V output rails.
It automatically recognizes an AC input voltage from 100 V to 240 V.
Yes, it is certified as 80 PLUS Bronze.
