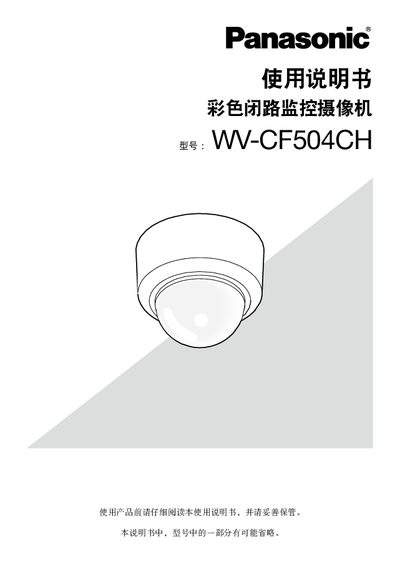

This manual describes the features and usage precautions of the color closed-circuit monitoring camera WV-CF504CH.
The WV‑CF504CH is a color closed‑circuit monitoring camcorder equipped with a 1/3‑inch CCD sensor and a 2× variable‑focus lens, designed for indoor surveillance applications. It offers features such as SUPER‑D5 dynamic range, automatic back‑focus, low‑light sensitivity, and intelligent VMD motion detection.
The manual covers safety warnings, proper installation by qualified personnel, operation procedures, menu settings, troubleshooting, and full technical specifications. It also lists required accessories, optional ceiling‑mount brackets, and regulatory compliance information. This manual is written in Chinese.
| Power supply (AC) | 24 V 50 Hz |
|---|---|
| Power consumption (AC) | 3.4 W |
| Power consumption (DC) | 280 mA |
| Operating temperature | -10 °C to +50 °C |
| Video output (BNC) | VBS 1.0 V p‑p / 75 Ω |
| Dimensions | Ø151 mm × 129 mm (H) |
| Weight (body) | 0.9 kg |
| Image sensor | 1/3‑inch interline‑transfer CCD |
| Effective pixels | 976 × 582 |
| Horizontal resolution (color) | 650 TV lines (typical) |
| Minimum illumination (color) | 0.1 lx (F1.4 wide) |
| Minimum illumination (black‑white) | 0.01 lx (F1.4 wide) |
| Dynamic range | 54 dB (typical with SUPER‑D5) |
No, the camcorder has no user‑serviceable parts; only qualified service personnel may repair it.
It can be powered from AC 24 V 50 Hz or DC 12 V as specified in the manual.
The camcorder needs at least 0.1 lx (F1.4 wide) in color mode.
