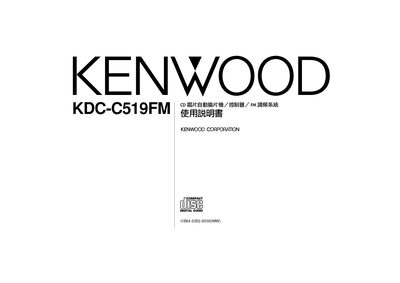

KDC-C519FM CD disc changer/controller/FM tuner user manual. This manual introduces the product's usage methods, installation methods, and troubleshooting.
This manual provides safety guidelines, installation steps, and operating instructions for the Kenwood KDC-C519FM CD changer and its built‑in FM tuner. It explains how to load CDs, use the control buttons, and troubleshoot common error messages.
Technical specifications, dimensions, power requirements, and environmental limits are listed at the end of the document for reference.
| Laser diode type | GaAlAs (λ=780 nm) |
|---|---|
| Spindle speed | 500~200 rpm (CLV) |
| Frequency response | 10 Hz ~ 20 kHz |
| FM frequency steps | 87.7 MHz to 89.9 MHz (0.2 MHz steps) |
| Power supply voltage | 14.4 V (11 ~ 16 V) |
| Power consumption | 1.4 A |
| Operating temperature | -10 °C ~ 50 °C |
| Dimensions (CD changer) | 250 mm × 80 mm × 176 mm |
It means the CD box is not fully inserted; you should make sure the CD box is properly placed.
Press the reset button on the unit; if the error does not clear, contact a nearby service center.
No, 8 cm CDs are prohibited; using an 8 cm CD adapter will prevent the disc from being ejected.
The remote uses a AAA battery; insert it according to the polarity markings.
