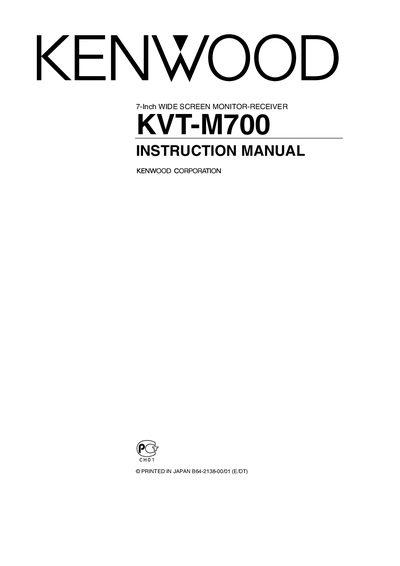

This manual introduces the features and usage of the 7-Inch Wide Screen Monitor-Receiver KVT-M700.
This manual covers safety precautions, installation steps, and basic operation of the Kenwood KVT-M700 7‑inch widescreen monitor‑receiver. It explains how to open and close the monitor, adjust angle and screen settings, and use the various control functions such as AV input, tuner, CD player, and disc changer.
Additional sections describe menu navigation, RDS features, alarm handling, troubleshooting messages, and detailed technical specifications of the monitor, tuner, and audio sections. The document also includes maintenance tips and warnings for proper use in a vehicle environment.
| Picture size | 7.0 inches wide (154.1 mm x 87.0 mm) |
|---|---|
| Display system | Transparent TN LCD panel |
| Effective pixels | 480 H x 234 V x RGB |
| Operating voltage | 14.4V DC (11 to 16 V) |
| Operational temperature range | 10°C to +60°C |
| Monitor unit dimensions | 180(W) x 50(H) x 195(D) mm |
Set the vehicle’s parking brake, then press the [OPEN] button; the monitor will open.
