Washing machine, model WD700A, brand Galanz, maximum washing capacity 17kg, rated washing capacity 14.9kg.

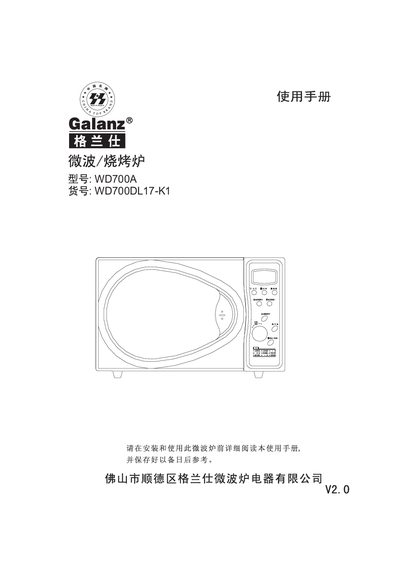

This manual covers the proper installation of the Galanz WD700A microwave oven, including required clearances from walls and the need for a grounded power source. It explains the control panel functions, cooking modes, child lock, and how to set the clock and timer.
Additional sections describe safe usage guidelines, cleaning and care procedures, troubleshooting, and a wiring diagram for service technicians. The specifications of the appliance are listed, such as power ratings, dimensions, and capacity. This manual is written in Chinese.
| Rated voltage / frequency | 220V / 50Hz |
|---|---|
| Rated input power (microwave / grill) | 1180W / 1050W |
| Microwave output power | 700W |
| Microwave frequency | 2450MHz |
| External dimensions (H×W×D) | 295mm × 458mm × 393mm |
| Internal cavity capacity | 17 L |
| Net weight | ≈14.9 kg |
The microwave should be placed at least 5 cm from each side wall and at least 10 cm from the back wall.
Press the child lock key; the lock indicator will light, disabling all other functions until the lock is released.
Do not exceed a load of 5 kg on the turntable.
