The document describes the features and characteristics of the product with model D8023YTL-V1, including capacity, voltage, power, etc.

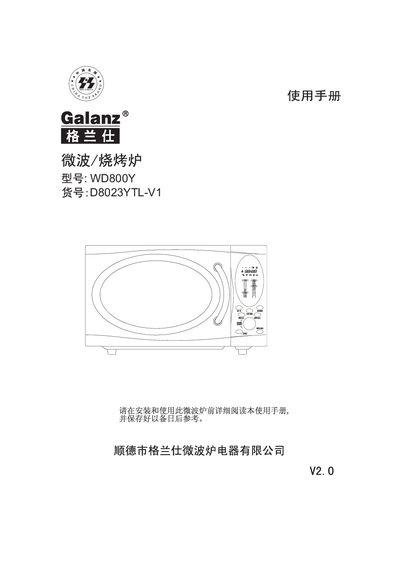

This manual introduces the Galanz WD800Y microwave/ grill oven, covering safety usage points, proper installation, and detailed operating procedures such as microwave, grill, and combined cooking modes. It also explains the control panel layout, child lock function, timer scheduling, and menu‑based cooking programs.
Additional sections cover cleaning and maintenance tips, recommended container materials, troubleshooting, and repair instructions, along with a full specification table and a wiring diagram for service technicians. This manual is written in Chinese.
| Rated voltage and frequency | 220 V~, 50 Hz |
|---|---|
| Rated input power | Microwave 1300 W, Grill 1050 W |
| Microwave output power | 800 W |
| Rated microwave frequency | 2450 MHz |
| External dimensions (H×W×D) | 305 mm × 508 mm × 435 mm |
| Cavity dimensions (H×W×D) | 215 mm × 350 mm × 330 mm |
| Cavity capacity | 23 L |
| Effective turntable area | 0.077 m² |
| Effective cavity volume | 16 L |
| Cavity material | Sprayed zinc‑plated sheet |
| Net weight | ≈ 16.5 kg |
The microwave should be at least 5 cm away from side walls and at least 10 cm from the back wall.
Press and hold the Stop/Cancel key for 3 seconds; the child‑lock indicator light will turn on.
Use ceramic, heat‑resistant glass, heat‑resistant plastic, or paper containers; avoid metal containers and metal‑coated dishes.
