Key facts
- Brand
- Galanz
- Model
- WD700A
- Category
- Microwave oven
- Industry
- Appliances
- Documents
- 4
- Languages
- ZH
- Last added
- 2012-03-14
Start here

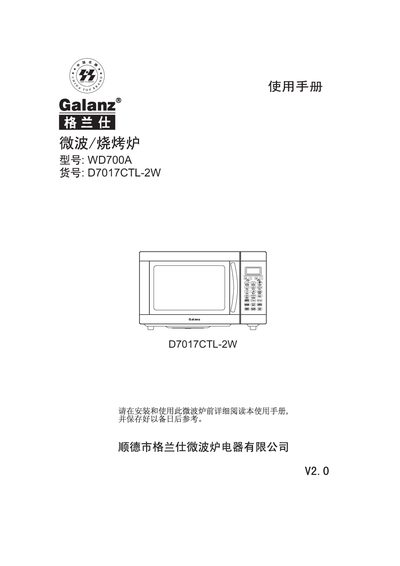

Galanz WD700A Microwave Oven User Manual
This manual explains how to install, operate, and maintain the Galanz WD700A microwave oven. It includes sections on safety precautions, control panel functions, special features such as child lock and quick‑start, and detailed troubleshooting.
The guide also covers cleaning procedures, regular maintenance, and provides the full technical specification sheet for the model, including power ratings, dimensions, and weight. Users can find step‑by‑step instructions for cooking modes, defrosting, and grill functions. This manual is written in Chinese.
Galanz WD700A specifications
| Rated voltage / frequency | 220 V ~ 50 Hz |
|---|---|
| Microwave input power | 1180 W |
| Grill input power | 1050 W |
| Microwave output power | 700 W |
| Microwave frequency | 2450 MHz |
| External dimensions (H × W × D) | 295 mm × 458 mm × 380 mm |
| Cavity dimensions (H × W × D) | 206 mm × 300 mm × 284 mm |
| Cavity capacity | 17 L |
| Effective turntable area | 0.057 m² |
| Net weight | ≈14.9 kg |
| Maximum turntable load | 5 kg |
All Galanz WD700A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How is the child lock activated and deactivated?
Press the CHILD LOCK key; the display shows an auto‑reminder and the oven will not operate until the lock is released.
What is the proper way to clean the interior of the microwave?
Turn off the oven, unplug it, and wipe the cavity with a soft, damp cloth; avoid strong detergents, metal brushes, or abrasive cleaners.
How do I set the clock on the WD700A?
Press the clock key and rotate the digital knob to adjust hours and minutes; the display shows the current time.
How does the child safety lock work?
Activate the child lock; the lock indicator lights up and all microwave functions are disabled until the lock is released.
What clearance is required between the microwave and surrounding walls?
The microwave should be placed at least 5 cm from each side wall and at least 10 cm from the back wall.
How is the child safety lock activated?
Press the child lock key; the lock indicator will light, disabling all other functions until the lock is released.
