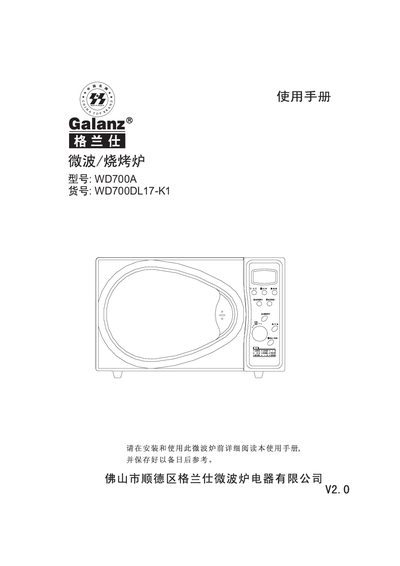

This manual covers the essential safety guidelines, installation clearances, and basic operation of the Galanz WD700A microwave oven. It explains how to set the clock, use the child lock, select cooking modes, and adjust power levels.
Additional sections detail cleaning, regular maintenance, troubleshooting, and specifications such as power ratings, dimensions, and turntable capacity, helping users keep the oven in optimal condition. This manual is written in Chinese.
| Rated voltage and frequency | 220 V / 50 Hz |
|---|---|
| Rated input power (microwave / grill) | 1180 W / 1050 W |
| Microwave output power | 700 W |
| Rated microwave frequency | 2450 MHz |
| External dimensions (H × W × D) | 295 mm × 458 mm × 393 mm |
| Internal cavity dimensions (H × W × D) | 206 mm × 300 mm × 284 mm |
| Internal cavity capacity | 17 L |
| Effective turntable area | 0.057 m² |
| Effective cavity volume | 11.4 L |
| Uniform heating method | Dedicated glass turntable |
| Net weight | ≈ 14.9 kg |
| Maximum turntable load | 5 kg |
Press the clock key and rotate the digital knob to adjust hours and minutes; the display shows the current time.
Activate the child lock; the lock indicator lights up and all microwave functions are disabled until the lock is released.
The turntable must not carry more than 5 kg of load.
