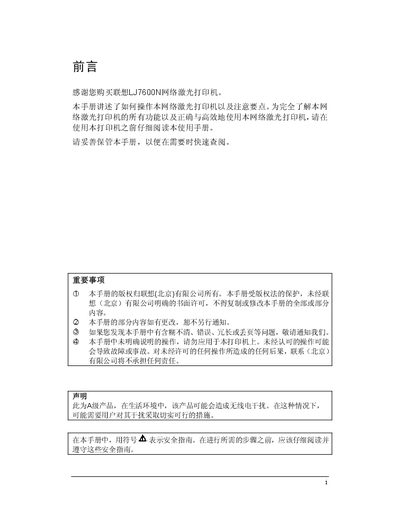

This document is a user manual for the Lenovo LJ7600N network laser printer, which provides information on the operation, precautions, installation steps, daily maintenance, troubleshooting, paper jam handling, consumables replacement, and installation and use of bundled software.
This manual covers the complete setup of the Lenovo LJ7600N network laser printer, including recommended installation locations, power requirements, and safety precautions. It also explains how to load paper, replace consumables such as the toner cartridge, drum unit, and transfer rollers, and provides guidelines for optimal operating environments.
Additional sections describe the printer’s software drivers, panel functions, and detailed troubleshooting steps for common issues like paper jams, poor print quality, and power problems. Appendices list technical specifications, consumable lifespans, and an index for quick reference. This manual is written in Chinese.
| Weight | 22.7 kg |
|---|---|
| Dimensions (W×D×H) | 505 mm × 376 mm × 356 mm |
| Power Voltage Options | 100 V / 110 V / 220‑240 V |
| Maximum Rated Current | 13 A (or 6 A for certain models) |
| Toner Cartridge Yield | ≈ 6,000 pages (6Kpv) |
| Fuser Unit Life | ≈ 100,000 pages |
| Transfer Roller Life | ≈ 200,000 pages |
| Feed Roller Life | ≈ 200,000 pages |
The printer should be used in an environment with a temperature range of 10 °C to 32 °C and a humidity range of 15 % to 85 %.
Refer to Section 4.1 "清除卡纸" which provides step‑by‑step instructions for removing jammed paper from the paper tray, fuser unit, or drum.
The toner cartridge is rated for approximately 6,000 pages under standard A4 printing with 5 % coverage.
