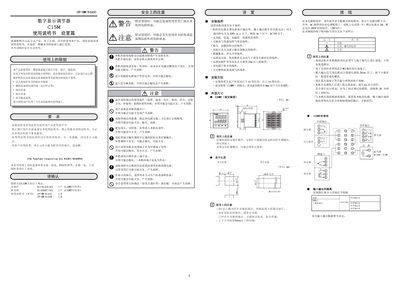

The Yamatake C15M digital display controller user manual provides installation, wiring, parameter settings, operation instructions, and specifications.
The C15M is a digital display controller used for temperature and process control in industrial automation. It supports various sensor types, multiple output options, and configurable PID parameters.
This manual covers safety precautions, installation locations and methods, wiring diagrams, parameter configuration, operation modes, diagnostic alarms, and technical specifications. It also lists optional accessories and provides troubleshooting guidance. This manual is written in Japanese.
| Power Consumption | ≤12 VA (8 VA @100 V, 12 VA @264 V) |
|---|---|
| Protection Level | IP66 / NEMA 4X |
| Output Contact Rating (NO side) | AC 250 V / DC 30 V, 3 A |
| Weight (panel‑mount type) | ≈150 g |
A slow‑blow (T) fuse rated 0.2 A and 250 V should be installed on the AC power line.
Install the unit within 10° up or down from the horizontal plane.
Signal cables should be routed at least 50 cm away from power cables and not share the same conduit.
