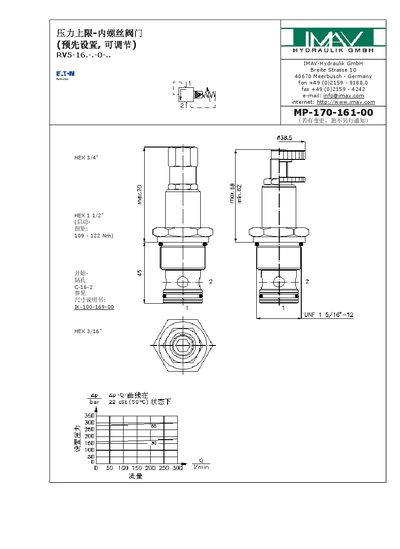

The RV5-16 is a pressure‑limiting hydraulic valve produced by IMAV. It features adjustable internal screw valves, selectable seal materials (Buna NBR, Viton FPM, or Teflon), and various pressure ranges for different applications. The document lists dimensions, sealing options, and recommended hydraulic fluid.
Technical parameters include a rated pressure of 350 bar, a flow rate of 303 L/min, a weight of 0.71 kg, and an operating temperature range from –40 °C to 120 °C. The manual also specifies the maximum leakage rate and provides guidance for installation and adjustment. This manual is written in Chinese.
| Rated pressure | 350 bar |
|---|---|
| Rated flow | 303 /min |
| Weight | 0.71 kg |
| Temperature range | -40°C to 120°C |
| Hydraulic fluid | HL hydraulic oil (DIN 51524 T1 / ISO TC 131) |
| Maximum leakage | 164 cc/min at 22 cSt (50 °C) and 350 bar |
| Seal options | Buna (NBR), Viton (FPM), or Teflon ring |
The rated pressure is 350 bar.
You can choose Buna (NBR), Viton (FPM), or a Teflon ring.
The valve operates from –40 °C up to 120 °C.
The maximum leakage is 164 cc/min at 22 cSt (50 °C) and 350 bar.
