IMAV models by category
Featured IMAV manuals

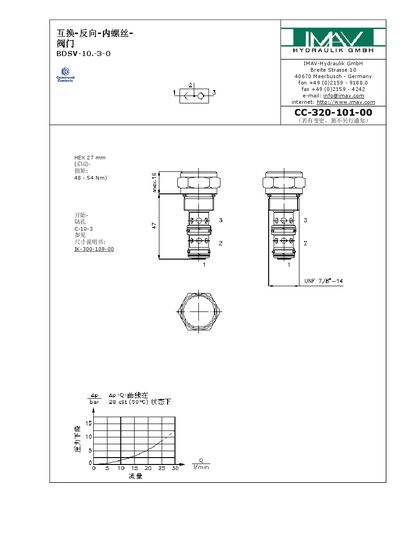

IMAV BDSV-10.-3-0 Manual
This manual from IMAV‑Hydraulik GmbH presents the technical data and usage information for the BDSV‑10.-3‑0 hydraulic valve. Contact details and the document reference (CC‑320‑101‑00) are listed on the first page.
Key specifications include a rated pressure of 350 bar, a flow rate of 23 L/min, a temperature range of –40 °C to 120 °C, and a weight of 0.11 kg. Sealing options are Buna (NBR), Viton (FPM) or Teflon, and the maximum leakage is limited to 5 drops per minute under 350 bar at 22 cSt. This manual is written in Japanese.
Covers: Technical Data · Sealing Options · Dimensions and Weight · Temperature Range · Contact Information

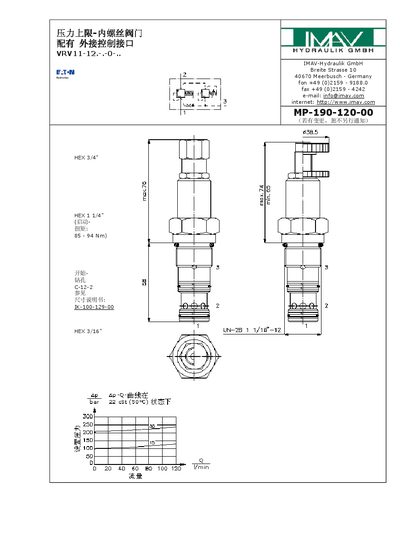

IMAV VRV11-12 Hydraulic Valve Manual
This two‑page document describes the IMAV VRV11-12 hydraulic valve, including its external control interface and ordering information. It lists the model variants, sealing material codes and reference part numbers for dimensions and housings.
Technical parameters are given, such as the rated pressure of 210 bar, rated flow of 114 L/min, weight of 0.4 kg, operating temperature range from –40 °C to 120 °C, and recommended hydraulic oil. Sealing options (Buna (NBR), Viton (FPM) or Teflon) and maximum leakage rates are also specified. This manual is written in Chinese.
Covers: Technical Parameters · Sealing Options · Dimensions and Reference Parts · Control Interface · Ordering Information

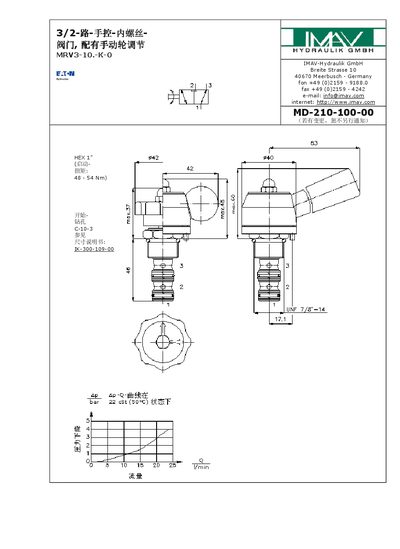

IMAV MRV3-10.-K-0 Hydraulic Valve Manual
The MRV3-10.-K-0 is a manually controlled hydraulic valve produced by IMAV‑Hydraulik GmbH in Meerbusch, Germany. The document lists contact information, ordering numbers and basic product description.
Technical data include a rated pressure of 210 bar, a flow capacity of 23 l/min, a weight of 0.22 kg, and an operating temperature range from –40 °C to 120 °C. Seal options are Buna (NBR) or Viton (FPM), and the positioning rod hole size is d 3.5 × 5 mm. This manual is written in Chinese.
Covers: Product Overview · Technical Specifications · Seal Material Options · Rated Pressure · Rated Flow · Weight

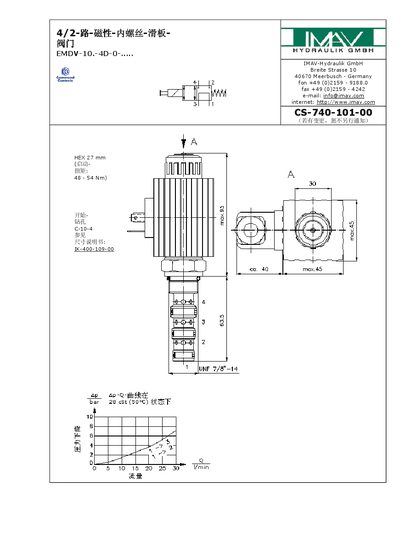

IMAV EMDV-10-4D-0 User Manual
The IMAV EMDV-10-4D-0 is a 4/2‑way hydraulic valve designed for a range of pressure and flow applications. It offers multiple voltage options (12 V DC, 24 V DC, 120 V AC, 240 V AC) and can be equipped with various seal materials such as Buna (NBR), Viton (FPM) or Teflon.
This manual contains the technical specifications, installation guidelines, operating instructions, and safety notes for the valve. It also details optional accessories, seal selections, and performance characteristics such as rated pressure, flow rate, temperature limits, and response times. This manual is written in Chinese.
Covers: Technical Specifications · Electrical Ratings · Pressure and Flow Ratings · Seal Options · Performance Characteristics · Installation Guidelines
Latest IMAV manuals
IMAV BDSV-10.-3-0 Manual
User Manual 2 pages · 88 KB · JAThe IMAV BDSV-10.-3-0 manual provides specifications, sealing options, and operating parameters for the hydraulic valve.
IMAV VRV11-12 Hydraulic Valve Manual
Product Leaflet 2 pages · 93 KB · ZHThe IMAV VRV11-12 manual provides technical specifications, pressure ratings, flow capacity and sealing options for the hydraulic valve.
IMAV MRV3-10.-K-0 Hydraulic Valve Manual
Product Leaflet 2 pages · 92 KB · ZHThe IMAV MRV3-10.-K-0 hydraulic valve manual provides specifications, pressure rating, flow rate, material options, and ordering details.
IMAV EMDV-10-4D-0 User Manual
User Manual 2 pages · 99 KB · ZHUser manual for the IMAV EMDV-10-4D-0 hydraulic valve, providing specifications, operation and safety information.
IMAV RV5-16 Hydraulic Valve Manual
User Manual 2 pages · 93 KB · ZHThe IMAV RV5-16 hydraulic valve manual provides technical specifications, pressure settings, and installation details.
IMAV EMDV-12.-3D-0-..... Manual
User Manual 2 pages · 100 KB · DEThe IMAV EMDV-12 manual provides specifications, ratings, and installation details for the hydraulic valve.
IMAV EMDV-12.-3C-0- Manual
Product Leaflet 2 pages · 100 KB · ZHManual for the IMAV EMDV-12.-3C-0- hydraulic valve, detailing specifications, dimensions, and ordering options.
IMAV EMDV-12-04-0 Hydraulic Valve Manual
User Manual 2 pages · 101 KB · ZHThe IMAV EMDV-12-04-0 hydraulic valve manual provides specifications, operating instructions, and ordering information.
