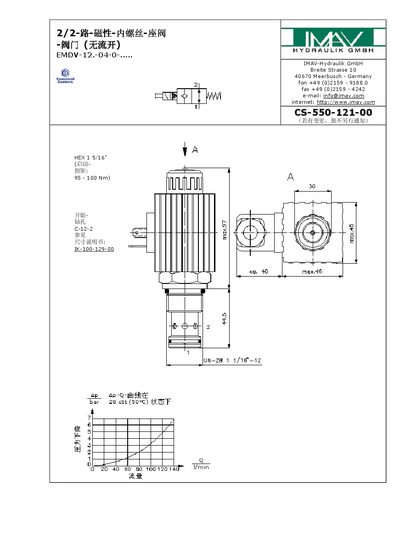

This manual describes the IMAV EMDV-12-04-0 hydraulic valve, including its construction, seal options, and electrical variants. It also contains ordering examples and reference drawings for installation.
Key technical data such as rated pressure (350 bar), flow rate (136 L/min), weight (0.9 kg), temperature range (‑40 °C to 120 °C), and power consumption (36 W) are listed, along with details on seal materials, leakage limits, and switching times. This manual is written in Chinese.
| Rated pressure | 350 bar |
|---|---|
| Rated flow | 136 L/min |
| Weight | 0.9 kg |
| Temperature range | -40 °C to 120 °C |
| Seal material options | Buna (NBR), Viton (FPM), Teflon |
| Maximum leakage | 5 drops/min at 22 cSt, 350 bar |
| Power consumption | 36 W |
| Opening time | ≈50 ms |
| Closing time | ≈50 ms |
The valve is rated for a pressure of 350 bar.
It can handle a flow of 136 L/min.
Seal options include Buna (NBR), Viton (FPM), or Teflon.
The opening time is about 50 ms.
