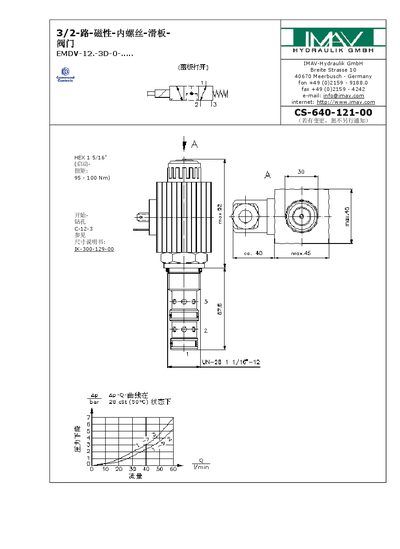

This manual from IMAV‑Hydraulik GmbH describes the EMDV‑12 hydraulic valve, its technical data, and installation notes. It includes contact information for the manufacturer in Meerbusch, Germany.
Key specifications such as rated pressure, flow rate, weight, temperature range, power consumption, and sealing materials are listed, along with the available voltage options for both DC and AC supplies. This manual is written in German.
| Rated pressure | 350 bar |
|---|---|
| Rated flow rate | 60 /min |
| Weight | 0.94 kg |
| Operating temperature range | -40°C to 120°C |
| Power consumption | 36 W |
| Maximum leakage | 85 ccm/min at 22 cSt and 3500 bar |
| Sealing material (option 1) | Buna (NBR) |
| Sealing material (option 2) | Viton (FPM) |
| DC voltage option | 12V DC, 24V DC |
| AC voltage option | 120V AC, 240V AC |
The valve is rated for a pressure of 350 bar.
The rated flow rate is 60 /min.
