This document describes the features and characteristics of the 3/2-way magnetic valve produced by IMAV-Hydraulik GmbH, including design, dimensions and sealing, appearance, voltage, connectors, technical parameters, etc.

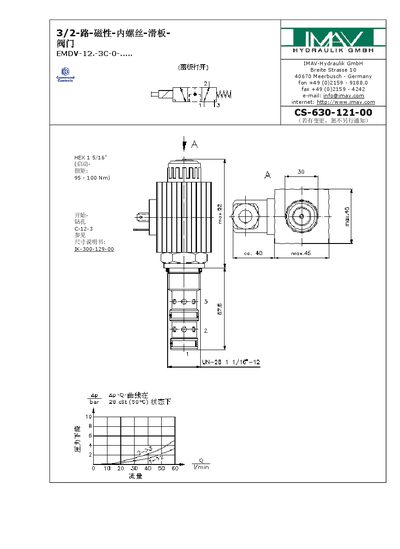

The document provides information on the IMAV EMDV-12.-3C-0- hydraulic valve produced by IMAV‑Hydraulik GmbH in Meerbusch, Germany. It includes the valve’s basic description, part numbers, and contact details for ordering.
Technical data such as rated pressure, flow rate, weight, temperature range, voltage options, seal materials, and performance figures are listed, along with references to related dimension drawings and optional emergency‑manual accessories. This manual is written in Chinese.
| Rated pressure | 350 bar |
|---|---|
| Rated flow | 60 l/min |
| Weight | 0.94 kg |
| Temperature range | -40°C to 120°C |
| Maximum leakage | 85 cc/min at 22 cSt, 3500 bar |
| Actual efficiency | 36 W |
| Opening time | ≈50 ms |
| Closing time | ≈50 ms |
| Seal material options | Buna (NBR), Viton (FPM), Teflon |
The valve is rated for a pressure of 350 bar.
It can operate from –40 °C up to 120 °C.
Both opening and closing times are about 50 ms.
