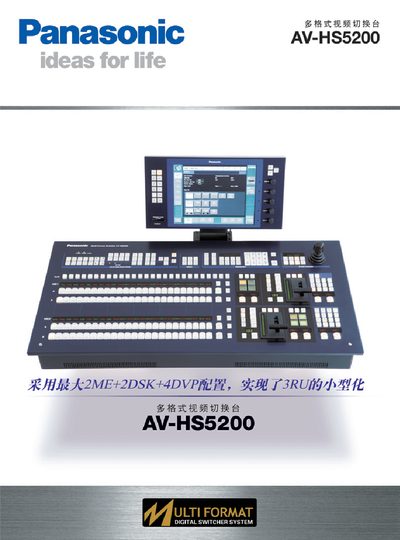

The AV‑HS5200 is a compact 3RU multi‑format video switcher designed for modern digital broadcasting. It supports a range of HD and SD video formats and offers flexible input and output routing with up to 36 input channels and multiple DVP, utility and CLIPSTORE functions.
The manual describes how to switch formats via the front‑panel controls, configure DSK and background insert features, and use the CLIPSTORE function to capture short video clips. It also outlines the key utility channels and provides basic operation guidance for the built‑in LCD panel. This manual is written in Chinese.
| Supported HD format | 1080/59i, 1080/50i, 1080/23Psf |
|---|---|
| Supported SD format | 480/59i, 576/50i |
| Physical size | 3RU |
| Maximum input channels | 36 |
| Utility channels | 4 |
The AV‑HS5200 supports HD formats 1080/59i, 1080/50i and 1080/23Psf, as well as SD formats 480/59i and 576/50i.
It can handle up to 36 input channels.
