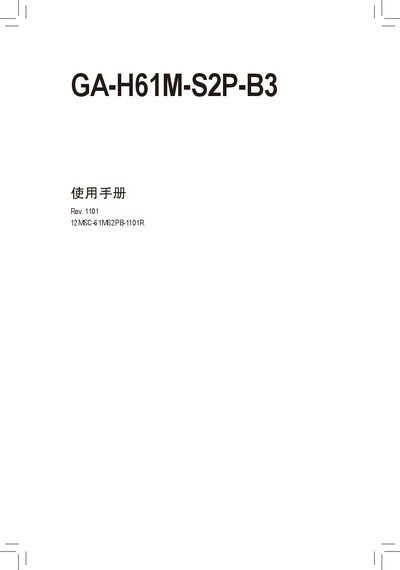

GA-H61M-S2P-B3 Motherboard User Manual, introduces the hardware installation and BIOS settings of the motherboard.
This manual covers everything needed to install and set up the GA-H61M-S2P-B3 motherboard, including safety precautions, hardware installation, and driver installation. It also explains BIOS settings, power connections, and peripheral configuration.
Additional sections describe the product specifications, supported CPUs and memory, expansion slots, and Gigabyte's warranty and service information for users in China and worldwide. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Core i7/i5/i3, Pentium, Celeron |
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Memory speed | DDR3 1333/1066/800 MHz |
| Chipset | Intel H61 |
| SATA ports | 4 × SATA 3 Gb/s |
| USB ports | Up to 8 × USB 2.0/1.1 |
| LAN | Atheros GbE LAN chip |
| Audio | Realtek HD Audio codec |
| PCI Express x16 slot | 1 slot, supports x16 |
| PCI Express x1 slot | 1 slot |
| PCI slots | 2 slots |
Before installation, disconnect power, avoid touching the serial number or warranty stickers, wear an antistatic wrist strap or keep hands dry, and handle the board on an antistatic surface.
The board has two DDR3 DIMM slots that together support up to 16 GB of memory.
It uses an LGA1155 socket compatible with Intel Core i7, i5, i3, Pentium and Celeron processors.
Contact Gigabyte’s authorized dealer, use the warranty card, or call the free service line at 800‑820‑0926.
