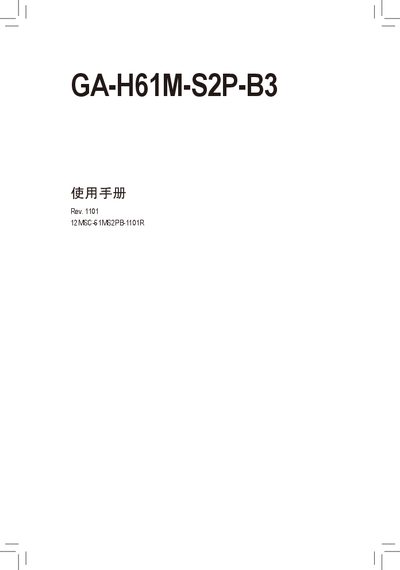

Gigabyte GA-H61M-S2P-B3 Motherboard User Manual

GA-H61M-S2P-B3 User Manual. This manual introduces hardware installation, BIOS setup and driver installation

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 44
File format: PDF
File size: 10.1 MB
Published: 13 March, 2012
Updated: 30 September, 2023
Model: GA-H61M-S2P-B3
MD5 checksum: 9C16B0DE3EDB8EFDE376C3FF05B5F7AB
PDF: Gigabyte GA-H61M-S2P-B3 Motherboard User Manual PDF

About this manual

This manual guides users through hardware installation, including CPU, memory, and expansion cards, and explains safety precautions such as ESD protection. It also details BIOS setup, power‑management options, and driver installation.

The document lists the board’s technical specifications, supported processors, memory types, storage interfaces, audio and LAN features, and provides warranty and service information for Gigabyte customers in China and abroad. This manual is written in Chinese.

What's inside

Hardware Installation
Product Specifications
BIOS Settings
Integrated Peripherals
Power Management
Audio and LAN
Storage Interfaces
USB Ports
PCI Slots
Driver Installation

Specifications

CPU socket	LGA1155
Memory slots	2 DDR3 DIMM slots, up to 16 GB
Supported memory speeds	DDR3 1333/1066/800 MHz
LAN controller	Atheros GbE LAN chip
SATA ports	4 SATA 3 Gb/s connectors

Frequently asked questions

What CPU socket does the GA-H61M-S2P-B3 motherboard use?

It uses an LGA1155 socket for Intel processors.

How many DDR3 memory slots are available on the board?

The board provides two DDR3 DIMM slots that can support up to 16 GB of memory.

Which LAN chip is integrated on the GA-H61M-S2P-B3?

An Atheros Gigabit Ethernet (GbE) LAN chip is built into the motherboard.
