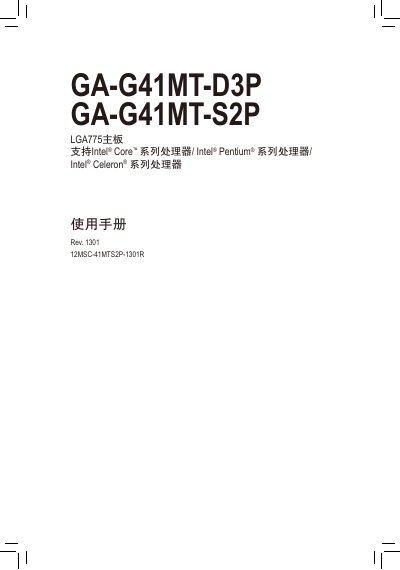

GA-G41MT-D3P/GA-G41MT-S2P LGA775 motherboard supports Intel® Core™ series processors / Intel® Pentium® series processors / Intel® Celeron® series processors. This user manual introduces the hardware installation and BIOS program settings, as well as driver installation and other contents.
This manual provides step‑by‑step instructions for installing the GA‑G41MT‑D3P and GA‑G41MT‑S2P motherboards, including CPU, memory, and peripheral installation, as well as safety precautions and anti‑static handling. It also details BIOS configuration options, driver installation, and troubleshooting guidance.
The document includes a complete hardware layout diagram, a list of supported processors and memory types, and specifications for integrated audio, networking, storage, and expansion slots. Appendices contain warranty information, regulatory compliance, and contact details for technical support. This manual is written in Chinese.
| Supported CPU socket | LGA775 |
|---|---|
| Chipset | Intel® G41 (northbridge) / Intel® ICH7 (southbridge) |
| Memory slots | 2 × 1.5 V DDR3 DIMM, up to 8 GB total |
| Dual‑channel memory support | Yes |
| Audio codec | VIA VT2 021 / Realtek ALC889 |
| Network controller | Atheros AR8151 (10/100/1000 Mbit) |
| Expansion slots | 1 × PCI‑Express x16, 2 × PCI‑Express x1, 1 × PCI |
| SATA ports | 4 × SATA 3 Gb/s |
| USB ports | 8 × USB 2.0/1.1 (4 rear, 4 via internal headers) |
It has two 1.5 V DDR3 DIMM slots that can support up to 8 GB of memory in total.
An Atheros AR8151 chip provides 10/100/1000 Mbit Ethernet connectivity.
Four USB 2.0/1.1 ports are located on the rear panel.
