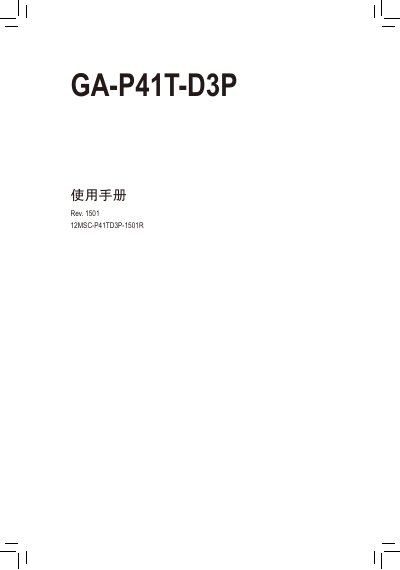

GA-P41T-D3P User Manual is a manual published by Gigabyte Technology Co., Ltd. about GA-P41T-D3P motherboard. It mainly introduces the hardware installation and BIOS program settings of the motherboard.
This manual covers everything needed to install and configure the GA-P41T-D3P motherboard, including CPU and cooler mounting, memory installation, and adding expansion cards. It also explains BIOS setup, power‑management options, and how to update the firmware.
Additional sections describe supported processors, memory types, audio and network features, storage interfaces, and detailed troubleshooting steps. Appendices contain warranty information and service contacts. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Chipset | Intel G41 |
| Memory slots | 2 DDR3 DIMM slots, up to 4 GB |
| Memory technology | Dual‑channel DDR3 1333/1066/800 MHz |
| Audio | Realtek HD audio codec |
| Network | Realtek GbE LAN (10/100/1000 Mbit) |
| PCI Express slots | 1 × PCIe x16, 3 × PCIe x1 |
| PCI slots | 3 × PCI |
| SATA ports | 4 × SATA 3 Gb/s |
| IDE port | 1 × IDE (ATA‑100/66/33) |
| USB ports | Up to 8 × USB 2.0/1.1 |
Power off the system, locate the LGA775 socket, align the CPU notch with the socket notch, place the CPU, apply thermal paste, and secure the cooler.
The board supports two 1.5 V DDR3 DIMM modules for a maximum of 4 GB total and operates in dual‑channel mode.
Use the Q‑Flash utility in the BIOS to load a BIOS file from a USB drive and follow the on‑screen prompts.
The motherboard provides up to eight USB 2.0/1.1 ports, four on the rear panel and four via internal headers.
