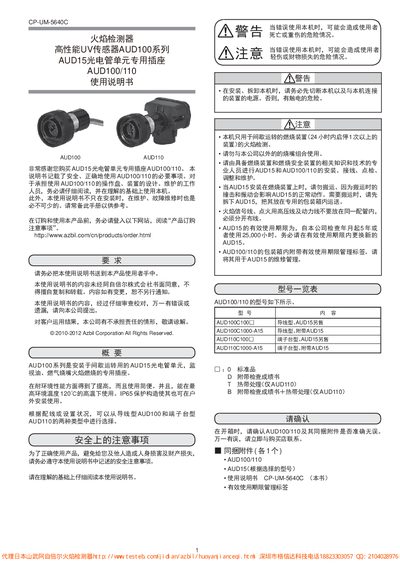

Installation, wiring, adjustment and maintenance instructions for the Azbil AUD100/110 flame detector socket.
This manual provides safety warnings, installation steps, wiring diagrams and adjustment procedures for the AUD100/110 flame detector socket used with the AUD15 phototube unit. It also includes specifications, model options and maintenance guidelines.
The document is intended for qualified personnel who design, install or service intermittent‑operation combustion equipment. Follow the recommended procedures to ensure reliable flame detection and safe operation. This manual is written in Chinese.
| Operating temperature | -20~+120 ℃ |
|---|---|
| Operating humidity | 40~90 %RH |
| Insulation resistance | ≥50 MΩ at 500 Vdc |
| Protection rating | IP65 |
| Allowable pressure | 35 kPa |
| Vibration resistance | ≤5 m/s² (10‑55 Hz) |
| Installation nut | G1 |
| Wire size | AWG#18 (≈1.2 mm²) |
| Cable length | ≈1800 mm |
It is rated for 5 years or 25 000 hours of use from the date of the company’s inspection.
Measure the DC voltage between the F and G terminals; a reading of 160‑220 Vdc indicates correct wiring.
The socket can be used in environments from –20 ℃ up to +120 ℃.
The power to the device and any connected equipment must be completely switched off.
