The Bose 302A speaker is a 200W speaker designed for surface mounting in indoor or outdoor commercial applications. It features: wide-range reproduction in a broad dispersion area; a multi-tap line transformer that provides flexible, convenient tap power settings; a transformer that is recessed into a custom-molded cavity in the speaker bracket; a streamlined design available in black or white to suit a variety of décors; versatile, easy-to-use mounting hardware; and all-weather construction that ensures reliable performance in both indoor and outdoor environments.
The Bose Panaray 302A is a 200 W commercial loudspeaker designed for indoor and outdoor applications. It offers selectable power settings, weather‑resistant construction, and optional black or white finishes.

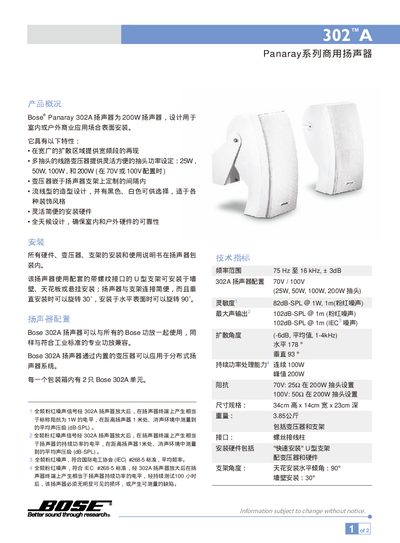

The manual covers mounting options (wall, ceiling, or bracket), power configurations (25 W, 50 W, 100 W, 200 W at 70 V or 100 V), acoustic performance (75 Hz‑16 kHz, 82‑102 dB SPL), dimensions, and warranty information. This manual is written in Chinese.
| Power settings | 25 W, 50 W, 100 W, 200 W (70 V/100 V) |
|---|---|
| Frequency response | 75 Hz – 16 kHz |
| Sensitivity (1 W, 1 m) | 82 dB SPL |
| Sensitivity (1 m) | 102 dB SPL |
| Dimensions (H × W × D) | 34 cm × 14 cm × 23 cm |
| Warranty period | 5 years |
The speaker can be set to 25 W, 50 W, 100 W, or 200 W, depending on whether it is configured for 70 V or 100 V operation.
It covers frequencies from 75 Hz up to 16 kHz.
The unit measures 34 cm high, 14 cm wide, and 23 cm deep.
All versions of the Bose 302A come with a five‑year warranty.
